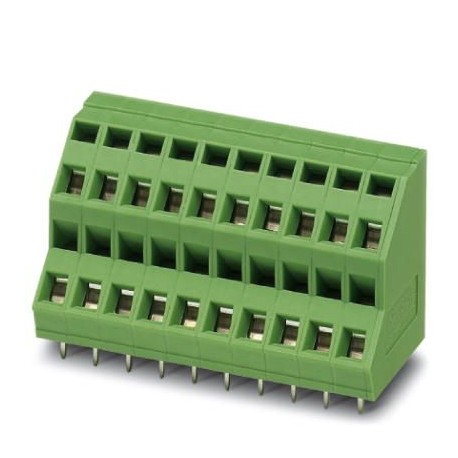

ZFKKDSA 1,5C-5,0- 8 1710045 PHOENIX CONTACT PCB terminal block
ZFKKDSA 1,5C-5,0-8
1710045
PHOENIX CONTACT
50 Pcs.
PCB terminal block
Printed circuit board terminal block, rated current: 16 A, rated voltage (III/2): 400 V, rated cross-section: 1.5 mm², number of potentials: 16, number of rows: 2, number of poles per row: 8, article family: ZFKKDS(A) 1.5C, pitch: 5 mm, connection type: Spring connection, mounting: Wave soldering, driver/printed circuit board connection direction: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.7 mm, number of solder pins per potential: 1, packaging type: boxed. The item can be aligned with different numbers of poles!
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Length [ l ] | 21 mm |
|---|---|
| Pitch | 5 mm |
| Dimension a | 35 mm |
| Width [ w ] | 40 mm |
| Height | 26 mm |
| Height [ h ] | 29.7 mm |
| Solder pin [P] | 3.7 mm |
| Hole diameter | 1.1 mm |
General
| Range of articles | ZFKKDS(A) 1,5C |
|---|---|
| Insulating material group | I |
| Rated voltage (III/2) | 400 V |
| Nominal current IN | 16 A |
| Nominal cross section | 1.5 mm² |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 8 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
