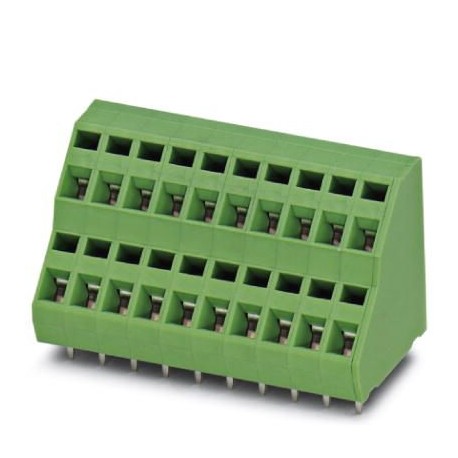

ZFKKDSA 1,5-5,08- 5 BD:NZP+F 1932313 PHOENIX CONTACT PCB terminal block

ZFKKDSA 1,5-5,08-5 BD:NZP+F

1932313

PHOENIX CONTACT

25 Pcs.

PCB terminal block Printed circuit board terminal, rated current: 12 A, sizing voltage (III/2): 400 V, nominal section: 1.5 mm², Number of potentials: 10, Number of rows: 2, Number of poles per row: 5, item family: ZFKKDS(A) 1.5, pitch: 5.08 mm, connection type: Spring connection, mounting: Wave welding, connection direction/printed circuit board: 45°, color: green, Pin layout: Linear pin arrangement, Pin length [P]: 3.5mm, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1932313
Packing unit25 pc
Minimum order quantity25 pc
NoteMade to Order (non-returnable)
GTIN4017918852498
Weight per Piece (excluding packing)13.490 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]24 mm
Pitch5.08 mm
Dimension a20.32 mm
Width [ w ]26.4 mm
Height25.5 mm
Height [ h ]29 mm
Solder pin [P]3.5 mm
Hole diameter1.3 mm

General

Range of articlesZFKKDS(A) 1,5
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Nominal cross section1.5 mm²
Maximum load current12 A
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Internal cylindrical gageA1
Stripping length7.5 mm
Number of positions5

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.14

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
