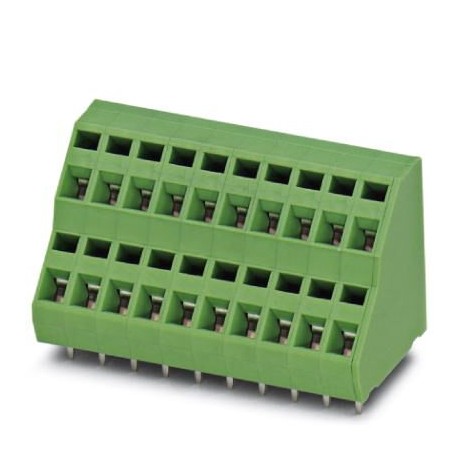

ZFKKDSA 1,5-5,08-20 BD:L1+-L2- 1731934 PHOENIX CONTACT PCB terminal block

ZFKKDSA 1,5-5,08-20 BD:L1+-L2-

1731934

PHOENIX CONTACT

10 Pcs.

PCB terminal block

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB terminal block, nominal current: 12 A, nom. voltage: 400 V, pitch: 5.08 mm, number of positions: 20, connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green

Key Commercial Data

Orderkey1731934
Packing unit50 pc
NoteMade to Order (non-returnable)
GTIN4046356158756
Weight per Piece (excluding packing)52.500 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]24 mm
Pitch5.08 mm
Dimension a96.52 mm
Width [ w ]102.6 mm
Height25.5 mm
Height [ h ]29 mm
Solder pin [P]3.5 mm
Hole diameter1.3 mm

General

Range of articlesZFKKDS(A) 1,5
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Nominal cross section1.5 mm²
Maximum load current12 A
Insulating materialPA
Flammability rating according to UL 94V0
Internal cylindrical gageA1
Stripping length7.5 mm
Number of positions20

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.14

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 4.027141109
eCl@ss 4.127141109
eCl@ss 5.027141190
eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002643
ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1139121432
UNSPSC 12.0139121432
UNSPSC 13.239121432

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
