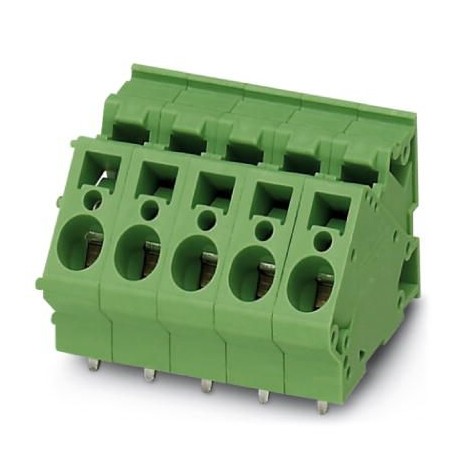

PHOENIX CONTACT ZFKDSA 4-7,5 RD ZFKDSA 4-7,5 RD 1704116 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZFKDSA 4-7,5 RD 1704116 PHOENIX CONTACT PCB terminal block

ZFKDSA 4-7,5 RD

1704116

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 32 A, nominal voltage (III/2): 630 V, nominal cross-section: 4 mm², number of potentials: 1, number of rows: 1, number of poles per row: 1, article family: ZFKDS(A) 4, pitch: 7.5 mm, connection type: Spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: red, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.6 mm, number of welding pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1704116
Packing unit1
GTIN4046356675598
Custom tariff number85369010

Dimensions

Length [ l ]29 mm
Pitch7.5 mm
Height23 mm
Solder pin [P]4.6 mm
Hole diameter1.8 mm

General

Range of articlesZFKDS(A) 4
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)6 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)500 V
Rated voltage (III/2)630 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN32 A
Nominal cross section4 mm²
Solder pin surface
Internal cylindrical gageA4
Stripping length10 mm
Number of positions1

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.10

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1704116 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 27.6 mm
Number of electrical connections (EF008252) 1
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 7.5 mm
Rated current In (EF008250) 32 A
Rated voltage (EF000228) 630 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 6 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.8 mm
Length pin (EF006825) 4.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Red
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
