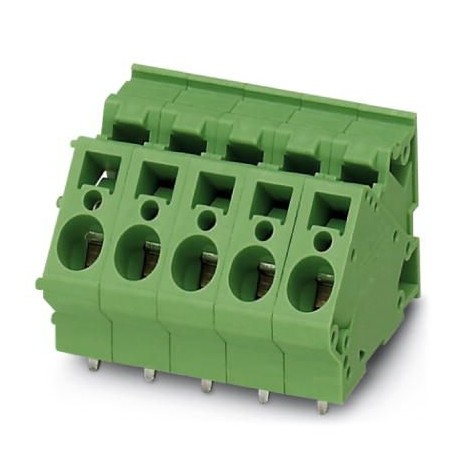

ZFKDSA 4-7,5- 8 NZ175N2306 1756715 PHOENIX CONTACT PCB terminal block

ZFKDSA 4-7,5- 8 NZ175N2306

1756715

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 32 A, dimensioning voltage (III/2): 630 V, nominal cross-section: 4 mm², Number of potentials: 8, Number of rows: 1, Number of poles per row: 8, article family: ZFKDS(A) 4, pitch: 7.5mm, connection type: Spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45°, color: green, Pin arrangement: Double linear pin arrangement, Pin length [P]: 4.6 mm, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1756715
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4046356337878
Weight per Piece (excluding packing)37.550 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length [ l ]29 mm
Pitch7.5 mm
Dimension a52.5 mm
Height23 mm
Solder pin [P]4.6 mm
Hole diameter1.8 mm

General

Range of articlesZFKDS(A) 4
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)6 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)500 V
Rated voltage (III/2)630 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN32 A
Nominal cross section4 mm²
Solder pin surface
Internal cylindrical gageA4
Stripping length10 mm
Number of positions8

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.10

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
