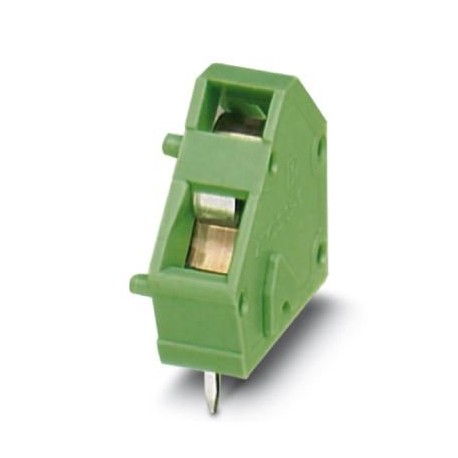

PHOENIX CONTACT ZFKDSA 1,5C-5,0-4 KMGY ZFKDSA 1,5C-5,0- 4 KMGY 1991723 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZFKDSA 1,5C-5,0- 4 KMGY 1991723 PHOENIX CONTACT PCB terminal block

ZFKDSA 1,5C-5,0-4 KMGY

1991723

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 16 A, nominal voltage (III/2): 400 V, nominal cross-section: 1.5 mm², number of potentials: 4, number of rows: 1, number of poles per row: 4, article family: ZFKDS(A) 1.5C, pitch: 5 mm, connection type: Spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: light gray, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1991723
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4017918964962
Weight per Piece (excluding packing)4.110 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length [ l ]14.1 mm
Pitch5 mm
Dimension a15 mm
Height13 mm
Solder pin [P]3.5 mm
Pin spacing5.08 mm
Hole diameter1.1 mm

General

Range of articlesZFKDS(A) 1,5C
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN16 A
Nominal cross section1.5 mm²
Maximum load current16 A
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Internal cylindrical gageA1
Stripping length7 mm
Number of positions4

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.14
2 conductors with same cross section, stranded min.0.14 mm²
2 conductors with same cross section, stranded max.0.5 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
