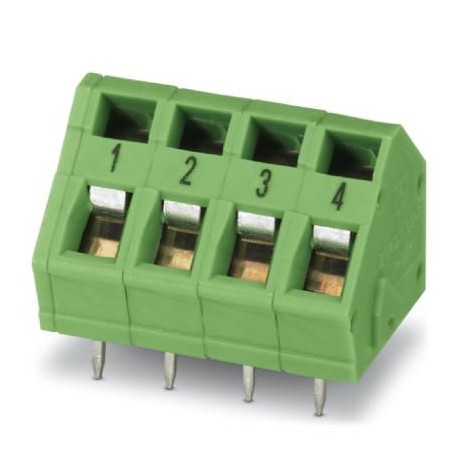

ZFKDSA 1,5C-5,0- 4-EXPROFINET1 1033571 PHOENIX CONTACT PCB terminal block

ZFKDSA 1,5C-5,0-4-EXPROFINET1

1033571

PHOENIX CONTACT

50 Pcs.

PCB terminal block Printed circuit board terminal block, nominal current: 16 A, nominal cross-section: 1.5 mm², number of potentials: 4, number of rows: 1, number of poles per row: 4, article family: ZFKDS(A) 1.5C-EX PROFINET, pitch: 5 mm, connection type: Spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of welding pins per potential: 2, packaging type: boxed. The PCB terminal block meets the requirements of the CAT5-compliant "Guideline for PROFINET" version 05/2017

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1033571
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4055626539430
Weight per Piece (excluding packing)4.130 g
Custom tariff number85369010
Country of originPL (Poland)

Item properties

Brief article descriptionPCB terminal block
Range of articlesZFKDS(A) 1,5C-EX PROFINET
Pitch5 mm
Number of positions4
Connection methodSpring-cage connection
Mounting typeWave soldering
Pin layoutLinear pinning
Number of levels1

Connection capacity

Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Stripping length7 mm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (10 - 16 µm Sn)
Metal surface soldering area (top layer)Tin (10 - 16 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Length [ l ]14.1 mm
Width [ w ]21 mm
Height [ h ]16.25 mm
Pitch5 mm
Height (without solder pin)12.75 mm
Solder pin [P]3.5 mm
Pin spacing5.08 mm
Pin dimensions0.7 x 0.7 mm

Dimensions for PCB design

Hole diameter1.1 mm
Pin spacing5.08 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.

Air clearances and creepage distances

Insulating material groupI

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
