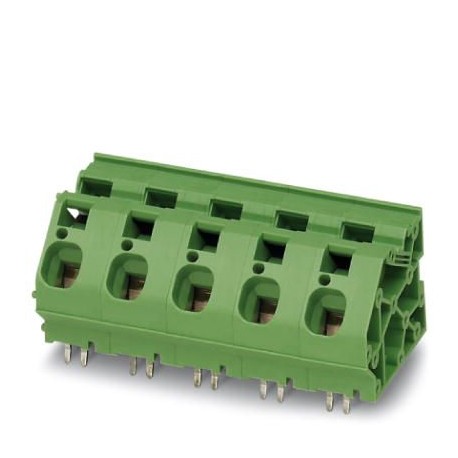

ZFKDSA 10-15,00- 4 1709303 PHOENIX CONTACT PCB terminal block

ZFKDSA 10-15,00- 4

1709303

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, rated current: 76 A, rated voltage (III/2): 1000 V, rated cross-section: 10 mm², number of potentials: 4, number of rows: 1, number of poles per row: 4, article family: ZFKDS(A) 10, pitch: 15 mm, connection type: Spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 6.5 mm, number of solder pins per potential: 4, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1709303
Packing unit1
GTIN4055626058061
Custom tariff number85369010

Dimensions

Length [ l ]33.4 mm
Pitch15 mm
Dimension a45 mm
Width [ w ]61.7 mm
Height27 mm
Height [ h ]33.5 mm
Solder pin [P]6.5 mm
Pin spacing15 mm
Hole diameter2.2 mm

General

Range of articlesZFKDS(A) 10
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)8 kV
Rated voltage (III/3)1000 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN76 A
Nominal cross section10 mm²
Solder pin surface
Stripping length12 mm
Number of positions4

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.6

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
