View larger
Images are for illustrative purposes only. Please refer to data sheet for details

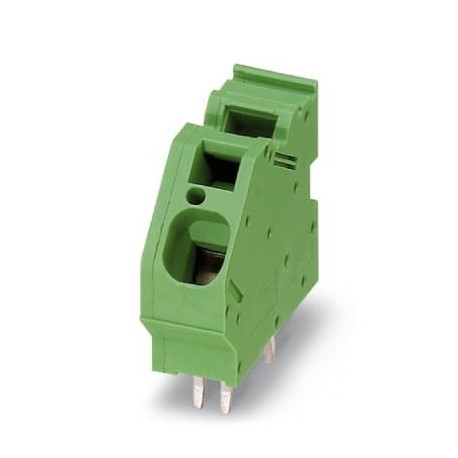

ZFKDSA 10-10,00- 4 RDBDWH4-1SO 1744112 PHOENIX CONTACT PCB terminal block
ZFKDSA 10-10,00-4 RDBDWH4-1SO
1744112
PHOENIX CONTACT
50 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 76 A, nominal voltage (III/2): 400 V, nominal cross-section: 10 mm², number of potentials: 4, number of rows: 1, number of poles per row: 4, article family: ZFKDS(A) 10, pitch: 10 mm, connection type: Spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: red, Pin arrangement: Linear pin arrangement, Pin length [P]: 6.5 mm, number of welding pins per potential: 4, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1744112 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356332217 |
| Weight per Piece (excluding packing) | 42.220 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
Dimensions
| Length [ l ] | 33.4 mm |
|---|---|
| Pitch | 10 mm |
| Dimension a | 30 mm |
| Height | 27 mm |
| Solder pin [P] | 6.5 mm |
| Pin spacing | 15 mm |
| Hole diameter | 2.2 mm |
General
| Range of articles | ZFKDS(A) 10 |
|---|---|
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 320 V |
| Rated voltage (III/2) | 400 V |
| Rated voltage (II/2) | 800 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 76 A |
| Nominal cross section | 10 mm² |
| Solder pin surface | |
| Stripping length | 12 mm |
| Number of positions | 4 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141111eCl@ss 4.127141109eCl@ss 5.027141190eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 33.5 mm |
| Number of electrical connections (EF008252) | 4 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 10 mm |
| Rated current In (EF008250) | 76 A |
| Rated voltage (EF000228) | 400 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Spring clamp connection |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 16 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 2.2 mm |
| Length pin (EF006825) | 6.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Red |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
