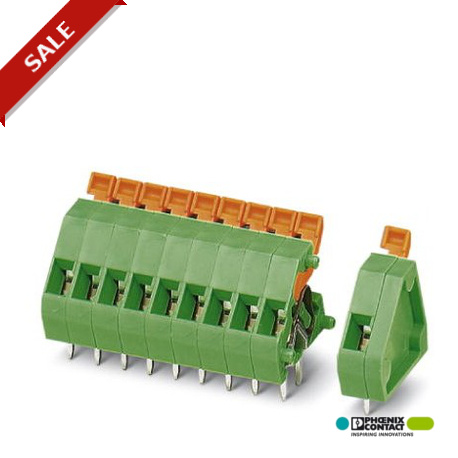

PHOENIX CONTACT ZFKDSA 1-W-3,81-6 ZFKDSA 1-W-3,81- 6 1704646 PHOENIX CONTACT Terminal block for printed circuit board, nominal current: 12 A, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZFKDSA 1-W-3,81- 6 1704646 PHOENIX CONTACT Terminal block for printed circuit board, nominal current: 12 A, ..

ZFKDSA 1-W-3,81-6

1704646

PHOENIX CONTACT

50 Pcs.

Terminal block for printed circuit board, nominal current: 12 A, nominal voltage: 200 V, pitch: 3.81 mm, number of poles: 6, connection type: Spring connection, mounting: Solder, conductor connection direction/printed circuit board: 45 °, color: green Printed circuit board terminal block, rated current: 12 A, rated voltage (III/2): 200 V, rated cross-section: 1 mm², number of potentials: 6, number of rows: 1, number of poles per row: 6, article family: ZFKDS(A) 1-W, pitch: 3.81 mm, connection type: Spring connection, mounting: Wave soldering, driver/printed circuit board connection direction: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB terminal block, nominal current: 12 A, nom. voltage: 200 V, pitch: 3.81 mm, number of positions: 6, connection method: Spring-cage connection, mounting: Soldering, conductor/PCB connection direction: 45 °, color: green

logo_rohs.gifLogoLogoLogoLogoLogoLogoLogo

Key Commercial Data

Orderkey1704646
Packing unit1
GTIN4046356892070
Custom tariff number85369010

eCl@ss

eCl@ss 4.027141109
eCl@ss 4.127141109
eCl@ss 5.027141190
eCl@ss 5.127141190
eCl@ss 6.027261101
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401

ETIM

ETIM 4.0EC002643
ETIM 5.0EC002643
ETIM 6.0EC002643

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1139121432
UNSPSC 12.0139121432
UNSPSC 13.239121432

ETIM for 1704646 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 19.48 mm
Number of electrical connections (EF008252) 6
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 3.81 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 200 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section multi-wired (EF007343) 1.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
