View larger
Images are for illustrative purposes only. Please refer to data sheet for details

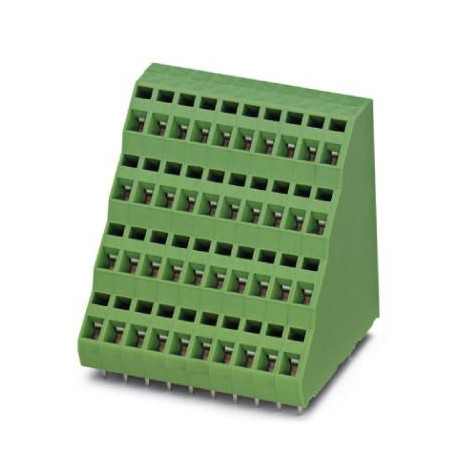

ZFK4DSA 1,5-5,08-20 BD:N-LQSO 1700786 PHOENIX CONTACT PCB terminal block
ZFK4DSA 1,5-5,08-20 BD:N-LQSO
1700786
PHOENIX CONTACT
10 Pcs.
PCB terminal block
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Length [ l ] | 42.4 mm |
|---|---|
| Pitch | 5.08 mm |
| Dimension a | 96.52 mm |
| Width [ w ] | 102.6 mm |
| Height | 48 mm |
| Height [ h ] | 51.2 mm |
| Solder pin [P] | 3.4 mm |
| Hole diameter | 1.3 mm |
General
| Range of articles | ZFK4DS(A) 1,5 |
|---|---|
| Insulating material group | I |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 250 V |
| Rated voltage (III/2) | 400 V |
| Rated voltage (II/2) | 630 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 12 A |
| Nominal cross section | 1.5 mm² |
| Maximum load current | 12 A |
| Insulating material | PA |
| Contact material | Sn |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Internal cylindrical gage | A1 |
| Stripping length | 7.5 mm |
| Number of positions | 20 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
