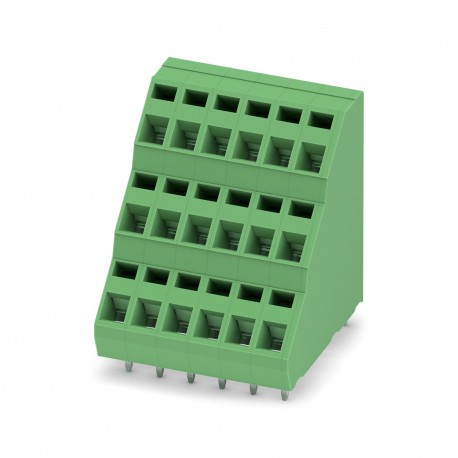

PHOENIX CONTACT ZFK3DSA 1,5-5,08-6 ZFK3DSA 1,5-5,08- 6 1118059 PHOENIX CONTACT Terminal for printed circuit board, nominal current: 12 A, pitch.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZFK3DSA 1,5-5,08- 6 1118059 PHOENIX CONTACT Terminal for printed circuit board, nominal current: 12 A, pitch..

ZFK3DSA 1,5-5,08-6

1118059

PHOENIX CONTACT

50 Pcs.

Terminal for printed circuit board, nominal current: 12 A, pitch: 5,08 mm, number of poles: 6, type of connection: spring clamp, mounting: Soldering by wave direction for connection conductor/pcb: 45 °, color: green Terminal block for printed circuit board, rated current: 12 A, rated voltage (III/2): 400 V, rated cross-section: 1.5 mm², number of rows: 3, number of poles per row: 6, article family: ZFK3DS(A) 1.5, pitch: 5.08 mm, connection type: Spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.4 mm, number of solder pins per potential: 1, packaging type: boxed PCB terminal block, rated current: 12 A, sizing voltage (III/2): 400 V, nominal cross-section: 1.5 mm2, number of rows: 3, number of poles per row: 6, product series: ZFK3DS(A) 1.5, pitch: 5.08 mm, connection type: Spring connection, mounting: wave soldering, conductor/board connection direction: 45 °, colour: green, Pin layout: Linear Pinning, Pin Length [P]: 3.4mm, Number of Solder Pins per Potential: 1, Package Type: Packed in Carton

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Article features
Product TypePCB terminal block
Product FamilyZFK3DS(A) 1.5
Product LineCOMBICON Terminals S
Number of poles6
Step5.08 mm
Number of rows3
Pin LayoutLinear Pinning
Number of Welding Pins per Potential1
Data maintenance status
Article review03
Electrical characteristics
Rated Current IN12 A
Rated voltage UN400 V
Sizing voltage (III/3)250 V
Sizing impulse voltage (III/3)4 kV
Sizing voltage (III/2)400 V
Sizing Impulse Voltage (III/2)4 kV
Sizing voltage (II/2)630 V
Sizing Impulse Voltage (II/2)4 kV
Connection data
Connection technology
typeModular PCB terminal block
Nominal cross-section1.5 mm²
Conductor connection
LinkSpring connection
Rigid conductor cross-section0.2 mm² ... 2.5 mm²
Flexible conductor cross-section0.2 mm² ... 1.5 mm²
Conductor cross-section AWG24 ... 14
Flexible conductor cross-section with cable lug without plastic collar0.25 mm² ... 1.5 mm²
Flexible conductor cross-section with mounted lug and plastic collar0.25 mm² ... 1.5 mm²
Length of the section to be stripped7.5 mm
Montage
Mounting typeWave Soldering
Pin LayoutLinear Pinning
Material information
Material information - contacts
noteComplies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201
Contact MaterialCu Alloy
Surface FinishHot-dip galvanizing
Metal Surface, Connection Point (Surface Layer)Tin (10 - 16 μm Sn)
Metal Surface Welding Area (Surface Layer)Tin (10 - 16 μm Sn)
Material information - case
Color (Case)Green (6021)
Insulation materialPA
Insulation Material GroupThe
CTI according to IEC 60112600
Combustibility class according to UL 94V0
Flammability index of GWFI filament according to EN 60695-2-12850
GWIT filament ignition temperature according to EN 60695-2-13775
Brinell hardness test temperature according to EN 60695-10-2125 °C
Material data - drive element
Colour (Drive Element)Green (6021)
dimensions
Dimensioned Drawingzswbwfibns.jpg
Step5.08 mm
Width [w]31.48 mm
Height [h]40 mm
Length [l]32.2 mm
Installation Height36.6 mm
Weld Shank Length [P]3.4 mm
Shank sizes0.7 x 1 mm
Printed circuit board design
Bore diameter1.3 mm
Electrical Controls
Creepage and Creepage Distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulation Material GroupThe
Resistance to surface currents (DIN EN 60112 (VDE 0303-11))CTI 600
Rated insulation voltage (III/3)250 V
Rated impulse voltage (III/3)4 kV
Minimum clearance value - inhomogeneous range (III/3)3 mm
Minimum creepage value (III/3)3.2 mm
Rated Isolation Voltage (III/2)400 V
Rated impulse voltage (III/2)4 kV
Minimum creepage value - inhomogeneous range (III/2)3 mm
Minimum creepage value (III/2)1.6 mm
Rated Isolation Voltage (II/2)630 V
Rated Impulse Voltage (II/2)4 kV
Minimum creepage value - inhomogeneous range (II/2)3 mm
Minimum creepage value (II/2)3.2 mm
Environmental and electrical life conditions
Environmental conditions
Ambient temperature (operating)-40 °C ... 100 °C (Depending on current flow curve/derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (transport and storage)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
Packaging Information
PackagingPacked in carton

ETIM for 1118059 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 40 mm
Number of levels (EF002659) 3
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 2.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 3.4 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
