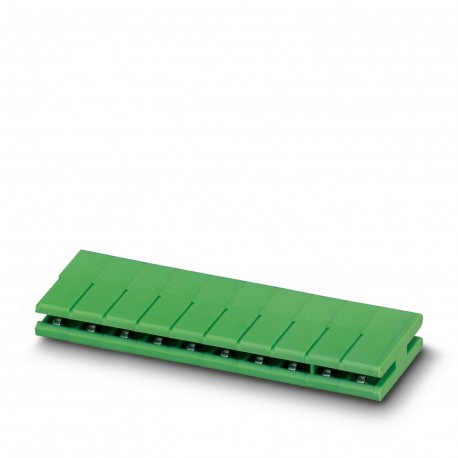

PHOENIX CONTACT ZEC 1,5/ 5-LPV-7,5 OHNE CODIER ZEC 1,5/ 5-LPV-7,5 OHNE CODIER 1972360 PHOENIX CONTACT PCB connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZEC 1,5/ 5-LPV-7,5 OHNE CODIER 1972360 PHOENIX CONTACT PCB connector

ZEC 1,5/ 5-LPV-7,5 OHNE CODIER

1972360

PHOENIX CONTACT

50 Pcs.

PCB connector Connector for printed circuit board, nominal section: 1.5 mm², color: green, nominal current: 10 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Female, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, family of articles: ZEC 1.5/.. -LPV, pitch: 7.5 mm, mounting: Direct plug-in connection technology, driver/printed circuit board connection direction: 0 °, number of solder pins per potential: 2, plug-in system: ZEC, lock: without, fixing type: without, packaging type: boxed PCB connector, nominal cross-section: 1.5 mm2, colour: green, rated current: 10 A, dimensioning voltage (III/2): 630 V, contact surface: Sn, contact connection type: Female, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, product series: ZEC 1.5/.. -LPV, pitch: 7.5 mm, mounting: Direct connection, conductor/board connection direction: 0°, number of solder pins per potential: 2, plug system: ZEC, locking: none, fastening type: none, packaging type: packed in carton

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1972360
Packing unit50 pc
Minimum order quantity50 pc
GTIN4017918937744
Weight per Piece (excluding packing)5.100 g
Custom tariff number85366990
Country of originBG (Bulgaria)

Dimensions

Pitch7.5 mm
Dimension a30 mm

General

Range of articlesZEC 1,5/..-LPV
Connection in acc. with standardEN-VDE
Nominal current IN10 A
Nominal voltage UN400 V
Nominal cross section1.5 mm²
Number of positions5

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1972360 Connectors (EC002637)
Feature Name Feature Value
Contact type (EF001587) Bus
Number of poles (EF001391) 5
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 7.5 mm
Modular spacing connections (EF006827) 7.5 mm
Rated current In (EF008250) 10 A
Rated voltage (EF000228) 630 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
