> PHOENIX CONTACT > PCB Connectors (PCC) > 1898347

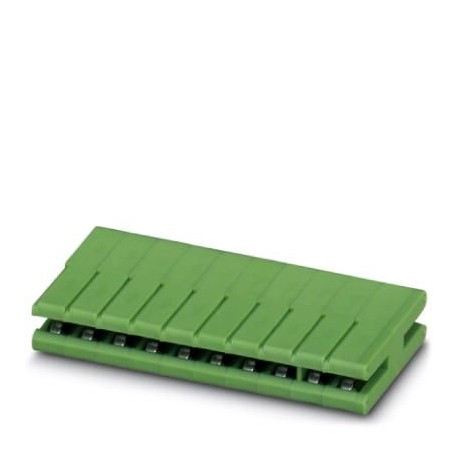

PHOENIX CONTACT ZEC 1,5/10-LPV-5,0 C2 ZEC 1,5/10-LPV-5,0 C2 1898347 PHOENIX CONTACT PCB connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZEC 1,5/10-LPV-5,0 C2 1898347 PHOENIX CONTACT PCB connector

ZEC 1,5/10-LPV-5,0 C2

1898347

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
PCB connector

Connector for printed circuit board, nominal section: 1.5 mm², color: green, nominal current: 10 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 10, number of rows: 1, number of poles: 10, number of connections: 10, article family: ZEC 1.5/.. -LPV, pitch: 5 mm, mounting: Direct plug-in connection technology, driver/printed circuit board connection direction: 0 °, number of solder pins per potential: 2, plug-in system: ZEC, lock: without, fixing type: without, packaging type: boxed

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
