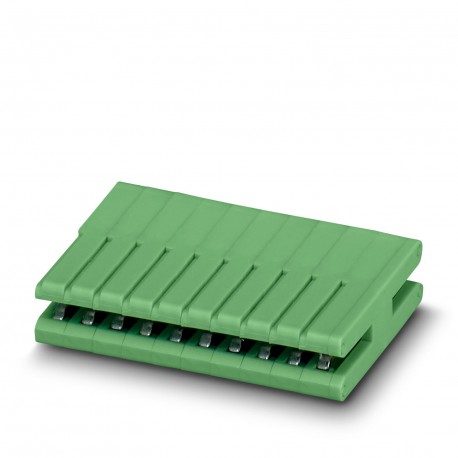

PHOENIX CONTACT ZEC 1,0/ 7-LPV-3,5 C1,CI2 ZEC 1,0/ 7-LPV-3,5 C1,CI2 1710636 PHOENIX CONTACT PCB connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZEC 1,0/ 7-LPV-3,5 C1,CI2 1710636 PHOENIX CONTACT PCB connector

ZEC 1,0/ 7-LPV-3,5 C1,CI2

1710636

PHOENIX CONTACT

50 Pcs.

PCB connector Connector for printed circuit board, nominal section: 1 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 200 V, contact surface: Tin, contact type: Female, number of potentials: 7, number of rows: 1, number of poles: 7, number of connections: 7, family of articles: ZEC 1.0/.. -LPV, pitch: 3.5 mm, mounting: Direct plug-in connection technology, driver/printed circuit board connection direction: 0 °, number of solder pins per potential: 2, plug-in system: ZEC, lock: without, fixing type: without, packaging type: boxed PCB connector, nominal cross section: 1 mm2, color: green, nominal current: 8 A, rated voltage (III/2): 200 V, contact surface: Sn, contact connection type: Socket, number of potentials: 7, number of rows: 1, number of positions: 7, number of connections: 7, product range: ZEC 1,0/..-LPV, pitch: 3.5 mm, mounting: Direct plug-in method, conductor/PCB connection direction: 0 °, number of solder pins per potential: 2, plug-in system: ZEC, locking: without, mounting: without, type of packaging: packed in cardboard

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePCB connector
Product familyZEC 1,0/..-LPV
Product lineCOMBICON Connectors S
Number of positions7
Pitch3.5 mm
Number of connections7
Number of rows1
Number of potentials7
Solder pins per potential2
Data management status
Article revision00
Electrical properties
Nominal current IN8 A
Nominal voltage UN200 V
Contact resistance1.2 mΩ
Rated voltage (III/3)160 V
Rated surge voltage (III/3)2.5 kV
Rated voltage (III/2)200 V
Rated surge voltage (III/2)2.5 kV
Rated voltage (II/2)320 V
Rated surge voltage (II/2)2.5 kV
Mounting
Mounting typeDirect plug-in method
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)
Material data - housing
Color (Housing)green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Notes
Notes on operationIn accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
Dimensions
Dimensional drawingtqtcsixdkh.jpg
Pitch3.5 mm
Mechanical tests
Insertion and withdrawal forces
ResultTest passed
No. of cycles20
Insertion strength per pos. approx.6 N
Withdraw strength per pos. approx.5 N
Resistance of inscriptions
SpecificationIEC 60068-2-70:1995-12
ResultTest passed
Visual inspection
SpecificationIEC 60512-2:1985-00
ResultTest passed
Dimension check
SpecificationIEC 60512-2:1985-00
ResultTest passed
Electrical tests
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)160 V
Rated surge voltage (III/3)2.5 kV
minimum clearance value - non-homogenous field (III/3)1.5 mm
minimum creepage distance (III/3)2 mm
Rated insulation voltage (III/2)200 V
Rated surge voltage (III/2)2.5 kV
minimum clearance value - non-homogenous field (III/2)1.5 mm
minimum creepage distance (III/2)1.5 mm
Rated insulation voltage (II/2)320 V
Rated surge voltage (II/2)2.5 kV
minimum clearance value - non-homogenous field (II/2)1.5 mm
minimum creepage distance (II/2)1.6 mm
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:1995-03
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis
Durability test
SpecificationIEC 60512-5:1992-08
Contact resistance R11.2 mΩ
Contact resistance R21.5 mΩ
Insertion/withdrawal cycles20
Climatic test
SpecificationISO 6988:1985-02
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168  h
Power-frequency withstand voltage1.39 kV
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard
