View larger
Images are for illustrative purposes only. Please refer to data sheet for details

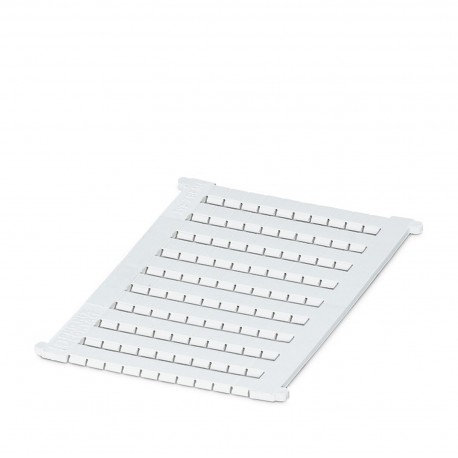

ZBFM 4 CUS 0825034 PHOENIX CONTACT Flat zack marker sheet
ZBFM 4 CUS
0825034
PHOENIX CONTACT
10 Pcs.
Flat zack marker sheet
Sheet of flat Zack strips, available: by mats, white, labeled according to customer's instructions, mounting class: fit in slot for flat index, for terminal width: 4.2 mm, usable surface: 4.2 x 5.2 mm
Flat zack marker sheet, can be ordered: by sheet, white, labeled according to customer specifications, mounting type: snap into flat marker groove, for terminal block width: 4.2 mm
Automation > Labelling for terminal block
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Labeled terminal marker |
| Pitch | 4.2 mm |
| Type | flat |
| Data management status | |
| Article revision | 01 |
| Marking | |
| Number of individual labels per row | 10 |
Mounting
| Mounting type | snap into flat marker groove |
Material specifications
| Color | white (RAL 9010) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Components | free from silicone and halogen |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
Dimensions
| Width | 4 mm |
| Pitch | 4.2 mm |
Standards and regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
