View larger
Images are for illustrative purposes only. Please refer to data sheet for details

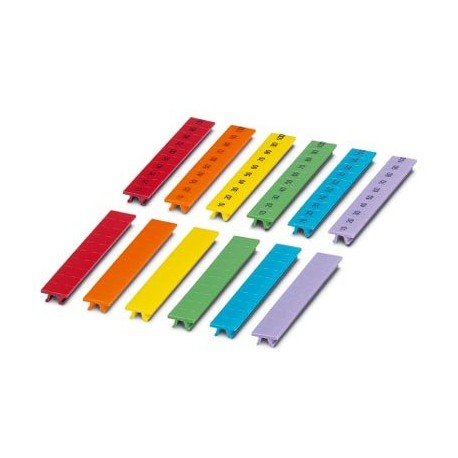

ZB 6/OG-100:UNPRINTED 0812777 PHOENIX CONTACT Zack marker strip
ZB 6/OG-100:UNPRINTED
0812777
PHOENIX CONTACT
100 Pcs.
Zack marker strip
Zack strip, Strips, orange, unlabeled, labelable with: PLOTMARK, CMS-P1-PLOTTER, mounting class: fit in slot for high index, for terminal width: 6.2 mm, usable area: 6.15 x 10.5 mm, Number of individual indices: 10
Automation > Labelling for terminal block
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0812777 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 101 (NTK-2004) |
| GTIN | 4017918966294 |
| Weight per Piece (excluding packing) | 1.270 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
General
| Color | orange |
|---|---|
| Type | high |
| Components | free from silicone and halogen |
| Flammability rating according to UL 94 | V2 |
| Material | PA |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 10 |
| Number of individual labels per row | 10 |
| Number of marker strips | 10 |
| Marking mounting type | snap into tall marker groove |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
|---|---|
| Flammability rating according to UL 94 | V2 |
