View larger
Images are for illustrative purposes only. Please refer to data sheet for details

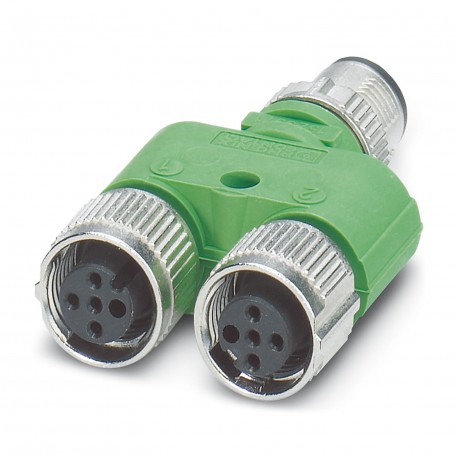

SAC-3P-Y/2XFS PE SCO 1523971 PHOENIX CONTACT Y distributor
SAC-3P-Y/2XFS PE SCO
1523971
PHOENIX CONTACT
5 Pcs.
Y distributor
Y-splitter, 4-pole, M12 straight connector, coding: A SPEEDCON, a straight female M12, coding: A SPEEDCON and Straight female M12, coding: A SPEEDCON
Y-splitter, 4-pole, M12 SPEEDCONNEC straight male connector, encoding: A, on M12 SPEEDCONNEC straight female connector, encoding: A and M12 SPEEDCONNEC straight female connector, encoding: A
Automation > Sensor actuator adapter
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1523971 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 258 (C-2-2017) |
| GTIN | 4046356127509 |
| Weight per Piece (excluding packing) | 24.880 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 |
General
| Note | with center distance of 18 mm, suitable for molded connectors and unshielded connectors that can be assembled with QUICKON IDC terminal block connection technology and a connection range of 0.14 mm² to 0.34 mm² |
|---|---|
| Rated current at 40°C | 4 A |
| Rated voltage | 48 V AC |
| 60 V DC | |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm (M12 connector) |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-101 |
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.127061800eCl@ss 6.027279200eCl@ss 7.027440104eCl@ss 8.027440104eCl@ss 9.027440106
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Y-adapter |
| Screened (EF000881) | No |
| Housing material (EF001596) | Other |
| Ambient temperature (EF002386) | 90 °C |
| Operating temperature (EF002393) | -25 °C |
| Degree of protection (IP), mounted (EF007466) | IP65 |
| Material thread ring (EF012304) | Other |
| Rated voltage (EF000228) | 48 V |
| Rated current In (EF008250) | 4 A |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| Pollution degree (EF006786) | 1 |
| Material of contact surface (EF004020) | Nickel/gold |
