View larger
Images are for illustrative purposes only. Please refer to data sheet for details

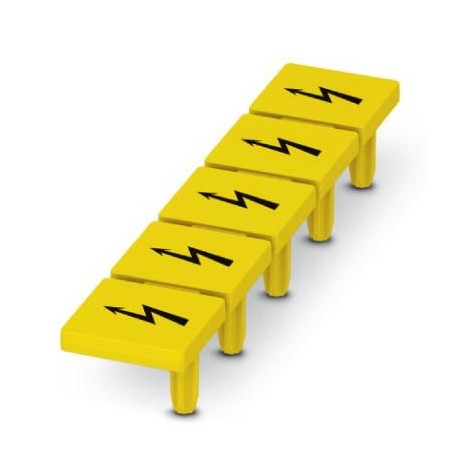

WS PT 10 1029030 PHOENIX CONTACT Warning label
WS PT 10
1029030
PHOENIX CONTACT
10 Pcs.
Warning label
Warning plate, yellow/black, labeled: Lightning with arrow, mounting class: plugged in, for terminal width: 10.2 mm
Automation > Warning/signing plate
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1029030 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| GTIN | 4055626529738 |
| Weight per Piece (excluding packing) | 1.520 g |
| Custom tariff number | 49119900 |
| Country of origin | IN (India) |
General
| Color | yellow/black |
|---|---|
| Type | Rectangle |
| Material | PVC |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Printing | Lightning flash |
| Marking mounting type | Plug in |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.024190218eCl@ss 4.124190218eCl@ss 5.027141137eCl@ss 5.127141137eCl@ss 6.040200100eCl@ss 7.040200103eCl@ss 8.040200103eCl@ss 9.040200103
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 9.7 mm |
| Colour (EF000007) | Other |
