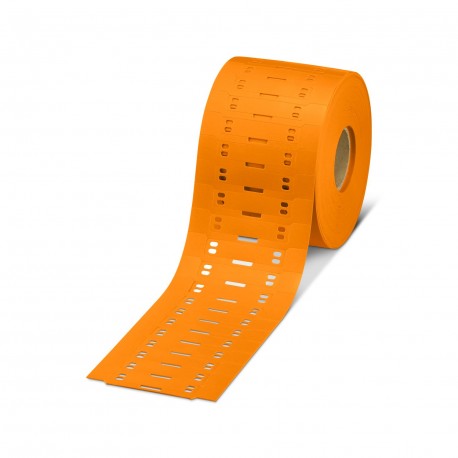

PHOENIX CONTACT WMTB HF (40X12)R OG WMTB HF (40X12)R OG 1097009 PHOENIX CONTACT Cable marker, Roll, orange, unlabeled, can be labeled with: THER.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WMTB HF (40X12)R OG 1097009 PHOENIX CONTACT Cable marker, Roll, orange, unlabeled, can be labeled with: THER..

WMTB HF (40X12)R OG

1097009

PHOENIX CONTACT

1 Pcs.

Cable marker, Roll, orange, unlabeled, can be labeled with: THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK ROLL X1, THERMOMARK ROLL 2.0, THERMOMARK ROLL, mounting type: Assembly with cable binders, cable diameter: ≥ 6 mm, lettering field size: 40 x 12 mm, Number of individual labels: 1000 Cable marker, Roll, orange, unlabeled, labelable with: THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK ROLL X1, THERMOMARK ROLL 2.0, THERMOMARK ROLL, mounting class: Mounting with cable tie, cable diameter: ≥ 6 mm, useful surface: 40 x 12 mm, Number of individual indexes: 1000 Cable marker, Roll, orange, unlabeled, can be labeled with: THERMOMARK E.300 (D)/600 (D), THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting type: Assembly with cable ties, cable diameter: ≥ 6 mm, Number of individual labels: 1000, text field height: 12 mm, text field width: 40 mm

Cables > Cable coding system
MS Material

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeConductor marking
TypeRoll
Data management status
Article revision00
Marking
Number of individual labels1000
Number of individual labels per row1
Identification technologyThermal transfer for rolls
Dimensions
Width12 mm
Text field width40.00 mm
Text field height12.00 mm
Length40 mm
External dimensions
Outside diameter6 mm ... 136 mm
Material specifications
RoHS compliantyes
Colororange (RAL 2003)
MaterialPUR
Flammability rating according to UL 94V2 (0,75 mm Wandstärke)
Componentshalogen-free
Cable/line
External cable diameter≥ 6.00 mm
Environmental and real-life conditions
Test for substances that would hinder coating with paint or varnish
ResultTest passed
Scratch test for the determining scratch resistance
SpecificationDIN EN ISO 1518-1:2019-10 (following)
Requirements≥ 5 N
ResultTest passed
Tesafilm test
SpecificationDIN EN ISO 2409:2013 (following)
ResultTest passed
UV resistance
SpecificationISO 4892-2:2013-03 (following)
ResultTest passed
Test duration96 h
Temperature resistance
SpecificationANSI/UL 969-2018:03 (following)
Test duration240 h
Rating 125 °C (150 °C)Test passed
Wipe resistance of inscriptions
SpecificationDIN EN 61010-1 (VDE 0411-01):2020-03
DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Isopropyl
[CAS No. 67-63-0]		Test passed
n-Hexane
[CAS No. 110-54-3]		Test passed
Water + Petroleum ether
[CAS No. 64742-82-1]		Test passed
Sodium hydroxide 0.1 mol/l
[CAS No. 1310-73-2]		Test passed
Ethanol (99 %)
[CAS No. 64-17-5]		Test passed
SpecificationISO 175:2010 (following)
Test duration168 h
Sodium hydroxide 0.1 mol/l
[CAS No. 1310-73-2]		Test passed
Ethanol (99 %)
[CAS No. 64-17-5]		Test passed
Diesel
[CAS No. 68476-34-6]		Test passed
IRM 901Test passed
IRM 902Test passed
Testing in a condensation changing climate in the presence of sulfur dioxide
SpecificationDIN 50018:2013-05
ResultTest passed
Climate levelAHT 1.0 S
Cycles2
Salt spray test
SpecificationDIN EN 60068-2-11:2000-02
ResultTest passed
Test duration96 h
Ambient conditions
Ambient temperature (operation)-25 °C ... 100 °C
Recommended storage conditions23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended.
Recommended ambient temperature (storage/transport)10 °C ... 25 °C
Recommended humidity (storage/transport)45 % ... 55 %
Shelf life2 years
Standards and regulations
Wipe resistanceDIN EN 61010-1 (VDE 0411-1)
Mounting
Mounting typeAssembly with cable ties

ETIM for 1097009 Cable terminations and insulation products (EC001530)
Feature Name Feature Value
Model (EF000010) Roller shape
Type (EF001139) Medium-walled
Toothing (EF009649) None
Material (EF002169) Other
Cable diameter (EF002356) 136 mm
Width (EF000008) 12 mm
Colour (EF000007) Orange
Fluorescent (EF009518) No
With label space (EF003456) Yes
Mounting method (EF000003) Other
