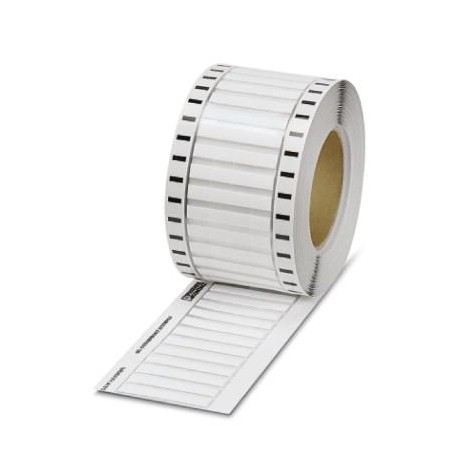

PHOENIX CONTACT WMS-2 HF 4,8 (15X9)RL CUS WMS-2 HF 4,8 (15X9)RL CUS 0833220 PHOENIX CONTACT Shrink sleeve View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WMS-2 HF 4,8 (15X9)RL CUS 0833220 PHOENIX CONTACT Shrink sleeve

WMS-2 HF 4,8 (15X9)RL CUS

0833220

PHOENIX CONTACT

1 Pcs.

Shrink sleeve Heat shrink tubing, Roll, white: custom, cut, mounting class: slip, cable diameter range: 2.4 ... 4.8 mm, usable surface: 15 x 9 mm

Cables > Cable coding system
CABINET add-on

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey0833220
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4055626044873
Weight per Piece (excluding packing)1.300 g
Custom tariff number49119900
Country of originDK (Denmark)

Dimensions

Length (b)15 mm
Width (a)9 mm
Cable diameter2.4 mm ... 4.8 mm

Ambient conditions

Recommended storage conditions23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended.

General

Colorwhite
Base element materialpolyolefine
TypeShrink sleeve
Componentshalogen-free
MaterialPolyolefine
RoHS compliantYes
Wipe resistanceDIN EN 61010-1 (VDE 0411-1)
Printinguser-defined
PrintabilityThermal transfer
Device5146477 THERMOMARK ROLL
5146723 THERMOMARK ROLL X1
5146231 THERMOMARK X1.2
5146147 THERMOMARK W2
0804501 THERMOMARK ROLLMASTER 300
Ink ribbon5148007 THERMOMARK-RIBBON 110-WMTB HF
0801358 THERMOMARK-RIBBON 110-WMSU
0801360 THERMOMARK-RIBBON 64-WMSU
0803390 THERMOMARK-RIBBON 25-WMSU
Test for substances that would hinder coating with paint or varnishVW PV 3.10.7:2005-02
ResultTest passed
Test specification weathering-resistanceFollowing ISO 4892-2:2013-03
Test duration96 h
Wipe resistance test resultTest passed
Salt spray test specificationDIN EN 60068-2-11:2000-02
Test duration96 h
Salt spray testing resultTest passed
Wipe resistance of test specification inscriptionsDIN EN 61010-1 (VDE 0411-1):2011-07
ResultTest passed
Marking mounting typeslide on
Oxygen index (DIN EN ISO 4589-2)34.9 %
R22HL 1 - HL 3
R23HL 1 - HL 3
R24HL 1 - HL 3

Standards and Regulations

Wipe resistanceDIN EN 61010-1 (VDE 0411-1)
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
