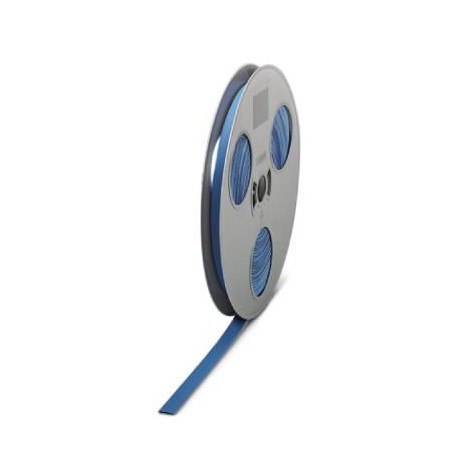

PHOENIX CONTACT WMS-2 HF 12,7 (EX20)RL BU CUS WMS-2 HF 12,7 (EX20)RL BU CUS 8199181 PHOENIX CONTACT Cable marker, blue: user-defined, mounting type: slide.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WMS-2 HF 12,7 (EX20)RL BU CUS 8199181 PHOENIX CONTACT Cable marker, blue: user-defined, mounting type: slide..

WMS-2 HF 12,7 (EX20)RL BU CUS

8199181

PHOENIX CONTACT

1 Pcs.

Cable marker, blue: user-defined, mounting type: slide on, lettering field size: max. 30 mm Heat-shrink tubing, blue: customized, mounting class: sliding, usable surface: max. 30mm

Cables > Cable coding system
CABINET add-on

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Cable marker, blue: user-defined, mounting type: slide on, lettering field size: max. 30 mm

Key Commercial Data

Orderkey8199181
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4055626436753
Weight per Piece (excluding packing)9.990 g
Custom tariff number49119900
Country of originPL (Poland)

Dimensions

Length (b)80 mm
Width (a)20 mm

General

Colorblue
TypeShrink sleeve
MaterialPolyolefine
RoHS compliantYes
Printinguser-defined
PrintabilityThermal transfer
Device5146477 THERMOMARK ROLL
5146723 THERMOMARK ROLL X1
5146231 THERMOMARK X1.2
5146147 THERMOMARK W2
0804501 THERMOMARK ROLLMASTER 300
0804663 THERMOMARK ROLLMASTER 600
Ink ribbon5148007 THERMOMARK-RIBBON 110-WMTB HF
0801358 THERMOMARK-RIBBON 110-WMSU
0801360 THERMOMARK-RIBBON 64-WMSU
0803390 THERMOMARK-RIBBON 25-WMSU
0804661 TM-RIBBON 110 WH 100
Test for substances that would hinder coating with paint or varnishVW PV 3.10.7:2005-02
ResultTest passed
Test specification weathering-resistanceFollowing ISO 4892-2:2013-03
Procedure
Test duration96 h
Test passed
Salt spray test specificationDIN EN 60068-2-11:2000-02
ProcedureA
Test duration96 h
Salt spray testing resultTest passed
Wipe resistance of test specification inscriptionsDIN EN 61010-1 (VDE 0411-1):2011-07
Test passed
Marking mounting typeslide on
Oxygen index (DIN EN ISO 4589-2)34.9 %
R22HL 1 - HL 3
R23HL 1 - HL 3
R24HL 1 - HL 3

Standards and Regulations

Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3

Classifications

eCl@ss

eCl@ss 5.127400400
eCl@ss 6.027400400
eCl@ss 7.027400401
eCl@ss 9.027400401

ETIM

ETIM 6.0EC001530
ETIM 7.0EC001530

ETIM for 8199181 Cable terminations and insulation products (EC001530)
Feature Name Feature Value
Type (EF001139) Medium-walled
Toothing (EF009649) None
Material (EF002169) Other
Cable diameter (EF002356) 12.7 mm
Width (EF000008) 20 mm
Colour (EF000007) Blue
Fluorescent (EF009518) No
Imprint (EF000131) Other
Mounting method (EF000003) Suspend
