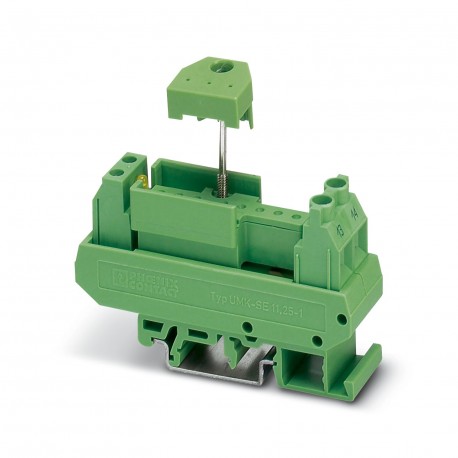

UMK- 1 OM-R/AMS 2983002 PHOENIX CONTACT Optocoupler module

UMK-1 OM-R/AMS

2983002

PHOENIX CONTACT

1 Pcs.

Optocoupler module The UMK-1 OM-R/AMS is a wiring interface and coupling level in one unit: Status indication, polarity reversal protection and input surge protection, solid-state relays up to 350 V DC/1 A or 480 V AC/5 A The UMK-1 OM-R/AMS is the wiring interface and coupling level in one unit: Diagnostic and status indicator, polarity and surge protection at the input, assembly option with solid-state relay up to 350 V DC/1 A or 480 V AC/5 A

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSolid-state relay module
Operating mode100% operating factor
With componentsyes
Data management status
Article revision05
Insulation characteristics
Overvoltage categoryIII
Pollution degree2
Electrical properties
Rated surge voltage8 kV
Input data
Nominal input voltage UN24 V DC
Input voltage range4 V ... 32 V
Typical input current at UN2 mA (without plug-in module)
Protective circuitReverse polarity protection; Polarity protection diode
Surge protection; Suppressor diode
Status display/channelYellow LED
Output data
Switching
Contact switching type1 N/O contact (double contact)
Maximum switching voltage230 V AC
550 V AC
Minimum switching voltage24 V AC
Limiting continuous current5 A
Error detection (line break / short-circuit)no
Connection data
Input
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Number of connections1
Number of positions2
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Output
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Number of connections1
Number of positions2
Conductor cross section rigid0.2 mm² ... 6 mm²
Conductor cross section flexible0.2 mm² ... 4 mm²
Conductor cross section AWG24 ... 10
Signaling
Status display presentYes
Dimensions
Dimensional drawingnkgewcrdqn.jpg
Width22.5 mm
Height77 mm
Depth72 mm
Material specifications
Colorgreen (RAL 6021)
Housing insulation materialPVC, side panel PA non-reinforced,
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Standards and regulations
Standards/regulationsDIN EN 50178
Mounting
Mounting typeDIN rail mounting
Assembly notein rows with zero spacing
Mounting positionany

ETIM for 2983002 Relays (EC001504)
Feature Name Feature Value
With LED indication (EF005950) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
