View larger
Images are for illustrative purposes only. Please refer to data sheet for details

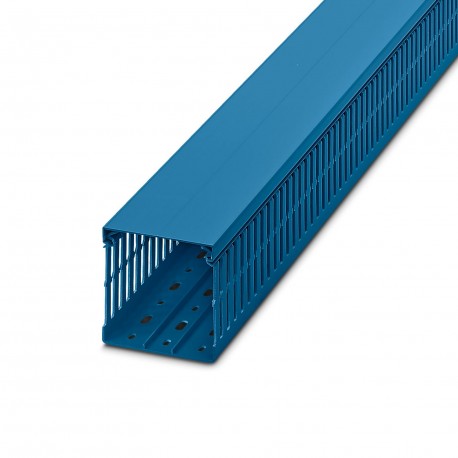

CD 80X80 BU 3240320 PHOENIX CONTACT Cable duct
CD 80X80 BU
3240320
PHOENIX CONTACT
8 Pcs.
Cable duct
Wiring channel for installation and installation in control cabinets, blue, top and bottom, width: 80 mm, height: 80 mm, length: 2000 mm
Cable duct for installation and mounting in control cabinets, blue, comprising upper part and mounting base, width: 80 mm, height: 80 mm, length: 2000 mm
Cables > Slotted cable trunking system
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Wiring duct |
| Data management status | |
| Article revision | 03 |
Dimensions
| Dimensional drawing |  |
| Width | 80 mm |
| Height | 80 mm |
| Length | 2000 mm |
Material specifications
| Color | blue (RAL 5015) |
| Material | PVC |
| Flammability rating according to UL 94 | V0 |
| Components | Lead-free |
Cable/line
| Halogen-free | no |
Mechanical properties
| Usage cross-section | 5685 mm² (100 %) |
| Number of cables at 60% filling volume | 215 (2.5 mm² Ø 3.4 mm) |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 80 mm |
| Width (EF000008) | 80 mm |
| Length (EF001438) | 2000 mm |
| Distance of slots (EF005246) | 6.5 mm |
| Slit width (EF005247) | 6 mm |
| Type of side wall (EF000098) | Slotted |
| Halogen free (EF000025) | No |
| Self-extinguishing (EF000681) | No |
| Flexible (EF000083) | No |
| With cover (EF007965) | No |
| Colour (EF000007) | Blue |
