View larger
Images are for illustrative purposes only. Please refer to data sheet for details

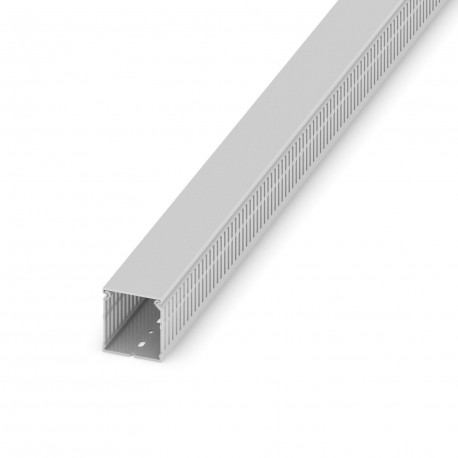

CD 60X60 3240193 PHOENIX CONTACT Cable duct
CD 60X60
3240193
PHOENIX CONTACT
18 Pcs.
Cable duct
Wiring channel for installation and installation in control cabinets, grey, top and bottom, width: 60 mm, height: 60 mm, length: 2000 mm
Cable duct for installation and mounting in control cabinets, gray, comprising upper part and mounting base, width: 60 mm, height: 60 mm, length: 2000 mm
Cables > Slotted cable trunking system
Cable duct
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Wiring duct |
| Data management status | |
| Article revision | 05 |
Dimensions
| Dimensional drawing |  |
| Width | 60 mm |
| Height | 60 mm |
| Length | 2000 mm |
Material specifications
| Color | Stone gray (RAL 7030) |
| Material | PVC |
| Flammability rating according to UL 94 | V0 |
| Components | Lead-free |
Cable/line
| Halogen-free | no |
Mechanical properties
| Usage cross-section | 3064 mm² (100 %) |
| Number of cables at 60% filling volume | 94 (2.5 mm² Ø 3.4 mm) |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 60 mm |
| Width (EF000008) | 60 mm |
| Length (EF001438) | 2000 mm |
| Distance of slots (EF005246) | 6.5 mm |
| Slit width (EF005247) | 6 mm |
| Type of side wall (EF000098) | Slotted |
| Halogen free (EF000025) | No |
| Self-extinguishing (EF000681) | No |
| Flexible (EF000083) | No |
| With cover (EF007965) | No |
| Colour (EF000007) | Grey |
