View larger
Images are for illustrative purposes only. Please refer to data sheet for details

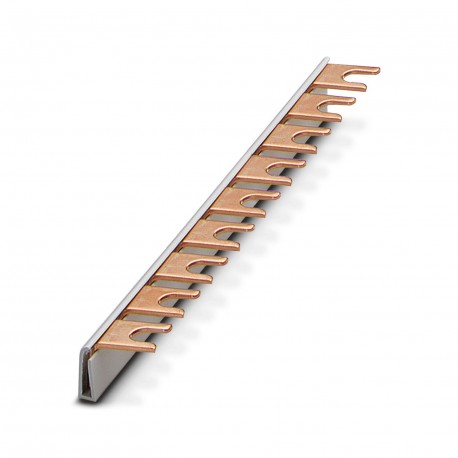

MPB 18/1- 9 2748580 PHOENIX CONTACT Wiring bridge
MPB 18/1-9
2748580
PHOENIX CONTACT
10 Pcs.
Wiring bridge
Wiring bridge for modules with 17.5 mm connection pitch, single-phase, 9-pole
Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 9-pos.
Automation > Phase busbar
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Bridge |
| Type | Comb bridge |
| Number of positions | 9 |
| Data management status | |
| Article revision | 02 |
Electrical properties
| Number of phases | 1 |
| Nominal current IN | 100 A |
Dimensions
| Height | 160.2 mm |
Material specifications
| Color | gray (RAL 7042) |
| Copper color | |
| Housing material | Plastic |
| Contact material | E-Cu 58 |
| Feature Name | Feature Value |
|---|---|
| Number of phases (EF000351) | 1 |
| Number of poles (EF001391) | 9 |
| Suitable for number of devices (EF007241) | 9 |
| Cross section (EF000649) | 16 mm² |
| Rated permanent current Iu (EF001389) | 100 A |
| Insulated (EF000019) | Yes |
| Rated short-time withstand current lcw (EF007050) | 25 kA |
| Suitable for devices with N-conductor (EF007218) | No |
| Suitable for devices with auxiliary switch (EF007217) | No |
