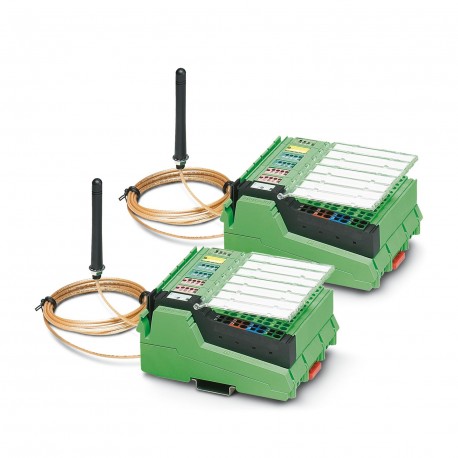

ILB BT ADIO MUX-OMNI 2884208 PHOENIX CONTACT Wireless-MUX set, two modules with 16 digital inputs and output..
ILB BT ADIO MUX-OMNI
2884208
PHOENIX CONTACT
1 Pcs.
Wireless-MUX set, two modules with 16 digital inputs and outputs and 2 analog inputs and outputs (0 ... 20 mA, 0 ... 10 V) each, omnidirectional antennas with 1.5 m cable, 24 V DC supply voltage
Wireless MUX game, two modules with 16 digital inputs and outputs each and 2 analog inputs and outputs (0 ... 20 mA, 0 ... 10 V), RSMA antenna connection (female), incl. omnidirectional antennas with 1.5 m cable
Automation > Fieldbus, decentr. periphery - analogue/digital I/O module
Safety
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Width | 95 mm |
|---|---|
| Height | 119.8 mm |
| Depth | 57 mm |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C |
|---|---|
| Permissible humidity (operation) | 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 95 % |
| Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above mean sea level) |
| Degree of protection | IP20 |
Wireless interface
| Designation | Bluetooth |
|---|---|
| Wireless standard | Bluetooth 1.2 |
| Antenna connection method | MCX (female) |
| Frequency range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
| Transmission power | 14 dBm (with automatic control) |
| Receiver sensitivity | -88 dBm |
Antenna
| Assembly instructions | OMNI omnidirectional antenna, 2 dBi, Lambda/2, with fixing bracket, 1.5 m cable |
|---|---|
| Number | 1 |
| Connection method | MCX (male) |
Power supply for module electronics
| Connection method | Inline connector |
|---|---|
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including ripple) |
| Supply current | < 100 mA |
Digital inputs
| Input name | Digital inputs |
|---|---|
| Connection method | Spring-cage connection |
| 1-wire | |
| Number of inputs | 16 |
| Filter time | 500 µs |
| Input characteristic curve | IEC 61131-2 type 1 |
Digital outputs
| Output name | Digital outputs |
|---|---|
| Connection method | Spring-cage connection |
| 1-wire | |
| Number of outputs | 16 |
| Protective circuit | Short-circuit protection, overload protection, protected against reverse voltages |
| Maximum output current per channel | 500 mA |
Analog inputs
| Number of inputs | 2 |
|---|---|
| Input name | Analog inputs |
| Measured value resolution | 12 bits |
| Current input signal | 0 mA ... 20 mA |
| Voltage input signal | 0 V ... 10 V |
Analog outputs
| Number of outputs | 2 |
|---|---|
| Output name | Analog outputs |
| DAC resolution | 12 Bit |
| Current output signal | 0 mA ... 20 mA |
| Voltage output signal | 0 V ... 10 V |
General
| Net weight | 885 g |
|---|---|
| Mounting type | DIN rail |
| MTBF | 465 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| 140 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) | |
| Diagnostics messages | Short-circuit / overload of the digital outputs LED |
| Wireless connection FS LED | |
| Logic and actuator voltage LED | |
| Link quality of the wireless connection 4 LEDs | |
| Wireless licences | Australia (Special rule: Please contact the Product Manager) |
| Belgium | |
| Bulgaria | |
| Denmark | |
| Germany | |
| Estonia | |
| Finland | |
| France | |
| Greece | |
| Great Britain | |
| Ireland | |
| Iceland | |
| Israel | |
| Italy | |
| Japan | |
| Canada | |
| Latvia | |
| Liechtenstein | |
| Lithuania | |
| Luxembourg | |
| Malta | |
| Netherlands | |
| Norway | |
| Austria | |
| Peru (Special rule: Please contact the Product Manager) | |
| Poland | |
| Portugal | |
| Romania | |
| Russia (Special rule: Please contact the Product Manager) | |
| Sweden | |
| Switzerland | |
| Singapore | |
| Slovakia | |
| Slovenia | |
| Spain | |
| South Africa | |
| Czech Republic | |
| Turkey | |
| Hungary | |
| USA | |
| Cyprus (rep.) | |
| South Korea | |
| Mounting type | DIN rail mounting |
