View larger
Images are for illustrative purposes only. Please refer to data sheet for details

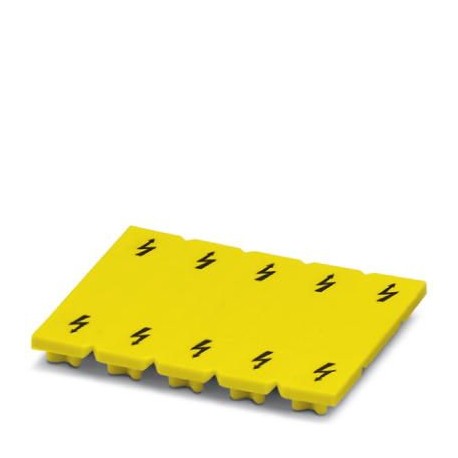

WS UT 6 3047345 PHOENIX CONTACT Warning label
WS UT 6
3047345
PHOENIX CONTACT
10 Pcs.
Warning label
Warning plate for UT terminal blocks
Automation > Warning/signing plate
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3047345 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 163 (C-3-2017) |
| GTIN | 4046356072823 |
| Weight per Piece (excluding packing) | 1.600 g |
| Custom tariff number | 49119900 |
| Country of origin | PL (Poland) |
General
| Color | yellow/black |
|---|---|
| Type | Rectangle |
| Components | free from silicone and halogen |
| Flammability rating according to UL 94 | V0 |
| Material | PA |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Printing | Lightning flash |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Salt spray testing result | Test passed |
| Alternating condensation climate with SO2 test specification | DIN 50018:2013-05 |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Condensation test result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Marking mounting type | Screws, rivets |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
|---|---|
| Flammability rating according to UL 94 | V0 |
Classifications
eCl@ss 10.0.140200202eCl@ss 4.024190218eCl@ss 4.124190218eCl@ss 5.027141137eCl@ss 5.127141100eCl@ss 6.040200100eCl@ss 7.040200103eCl@ss 8.040200202eCl@ss 9.040200202
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Halogen free (EF000025) | Yes |
| Width (EF000008) | 8.13 mm |
| Height (EF000040) | 25.2 mm |
| Colour (EF000007) | Other |
| Mounting method (EF000003) | Other |
