View larger
Images are for illustrative purposes only. Please refer to data sheet for details

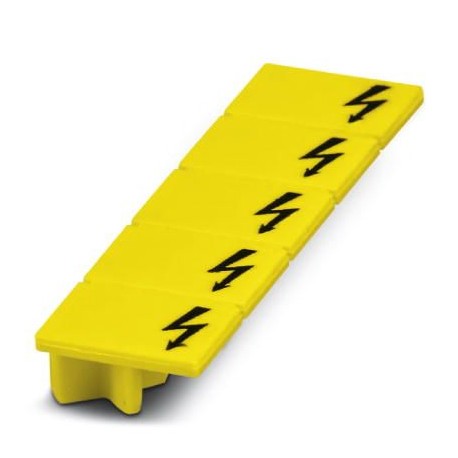

WST 6 3030967 PHOENIX CONTACT Warning cover
WST 6
3030967
PHOENIX CONTACT
10 Pcs.
Warning cover
Warning cover, Strips, yellow, labeled, mounting type: plugged in, for terminal width: 8.2 mm, usable area: 10.4 x 7.55 mm, Number of individual indexes: 5
Automation > Warning/signing plate
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3030967 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 163 (C-3-2017) |
| GTIN | 4017918193126 |
| Weight per Piece (excluding packing) | 0.770 g |
| Custom tariff number | 49119900 |
| Country of origin | PL (Poland) |
General
| Color | yellow |
|---|---|
| Type | high |
| Components | free from silicone and halogen |
| Flammability rating according to UL 94 | V2 |
| Material | PA |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 5 |
| Number of individual labels per row | 5 |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Alternating condensation climate with SO2 test specification | DIN 50018:2013-05 |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Condensation test result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Marking mounting type | Plug in |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
|---|---|
| Flammability rating according to UL 94 | V2 |
Classifications
eCl@ss 4.027141199eCl@ss 4.127141199eCl@ss 5.027141145eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141137eCl@ss 8.027141137eCl@ss 9.027141137
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Halogen free (EF000025) | Yes |
| Width (EF000008) | 8.2 mm |
| Height (EF000040) | 1 mm |
| Colour (EF000007) | Yellow |
| Mounting method (EF000003) | Other |
