View larger
Images are for illustrative purposes only. Please refer to data sheet for details

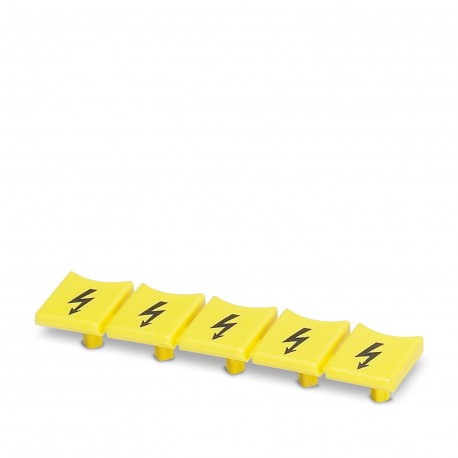

WST 10/35 3030006 PHOENIX CONTACT Warning cover
WST 10/35
3030006
PHOENIX CONTACT
25 Pcs.
Warning cover
Warning cover, 5 poles, for terminal widths of 10.2 mm, 12.2 mm and 16 mm
Automation > Warning/signing plate
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Labeled terminal marker |
| Number of positions | 5 |
| Pitch | 9.35 mm |
| Type | high |
| Data management status | |
| Article revision | 01 |
Mounting
| Mounting type | plug in |
Material specifications
| Color | yellow (RAL 1018) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Components | free from silicone and halogen |
Environmental and real-life conditions
| Test for substances that would hinder coating with paint or varnish | |
| Result | Test passed |
| UV resistance | |
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
| Wipe resistance of inscriptions | |
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Testing in a condensation changing climate in the presence of sulfur dioxide | |
| Specification | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Salt spray test | |
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
Dimensions
| Width | 10.2 mm |
| Height | 1 mm |
| Length | 11.8 mm |
| Pitch | 9.35 mm |
Standards and regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Halogen free (EF000025) | Yes |
| Width (EF000008) | 10.2 mm |
| Height (EF000040) | 1 mm |
| Colour (EF000007) | Yellow |
| Mounting method (EF000003) | Other |
