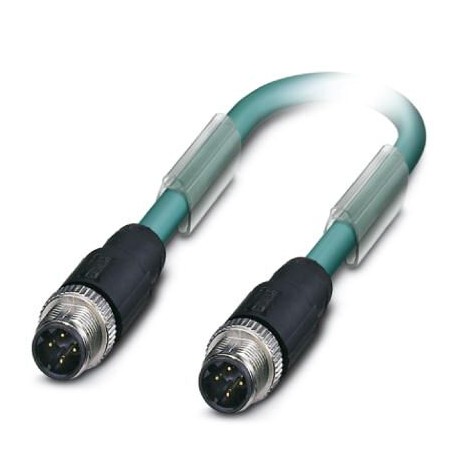

PHOENIX CONTACT NBC-M12MSD/15,0-93E/M12MSD NBC-M12MSD/15,0-93E/M12MSD 1404301 PHOENIX CONTACT Assembled Ethernet cable, CAT5e, shielded, 2-pair, 26 AWG.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-M12MSD/15,0-93E/M12MSD 1404301 PHOENIX CONTACT Assembled Ethernet cable, CAT5e, shielded, 2-pair, 26 AWG..

NBC-M12MSD/15,0-93E/M12MSD

1404301

PHOENIX CONTACT

1 Pcs.

Assembled Ethernet cable, CAT5e, shielded, 2-pair, 26 AWG stranded (7-wire), RAL 5021 (water blue), M12 plug to M12 plug, line, length 15 m Ready-made Ethernet cable, CAT5e, shielded, 2 pairs, flexible AWG 26 (7 wires), RAL 5021 (aqua blue), M12 male to M12 male connector, Line, length 15 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1404301
Packing unit1 pc
GTIN4046356690089
Weight per Piece (excluding packing)720.000 g
Custom tariff number85444290
Country of originPL (Poland)

Drawings

Dimensional drawing

Dimensional drawing
Plug, M12 x 1, straight, shielded

Dimensional drawing

Dimensional drawing
Plug, M12 x 1, straight, shielded

Circuit diagram

Circuit diagram
Contact assignment of M12 connector/socket

Schematic diagram

Schematic diagram
Pin assignment M12 male connector, 4-pos., D-coded, male side

Schematic diagram

Schematic diagram
Pin assignment M12 male connector, 4-pos., D-coded, male side

Cable cross section

Cable cross section
Ethernet [93E]

Back to top

Mechanical characteristics

Overvoltage categoryII
Degree of pollution3
Back to top

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C (cable, fixed installation)
-5 °C ... 60 °C (cable, flexible installation)
Back to top

Material data

Flammability rating according to UL 94V0
Contact surface materialNi/Au
Contact materialCuSn
Contact carrier materialPA 6.6
Cable gland materialZinc die-cast, nickel-plated
Back to top

Standards and Regulations

Flammability rating according to UL 94V0
Back to top

Line characteristics

Cable typeEthernet
Cable abbreviationJ-LI02YS(ST) CH 2 x 2 x 26 AWG
Cable structure2x2xAWG26/7; SF/UTP
Conductor cross section2x 2x 0.14 mm²
AWG signal line26
Conductor structure signal line7x 0.16 mm
Core diameter including insulation1 mm -0.2 mm
External cable diameter5.75 mm ±0.15 mm
Wire colorswhite/orange-orange, white/green-green
External sheath, colorwater blue RAL 5021
Insulation resistance≥ 5 GΩ*km
Conductor resistance≤ 284 Ω/km
Transmission characteristics (category)CAT5 (IEC 11801:2002)
Wave impedance100 Ω ±15 % (at 1 ... 100 MHz)
Near end crosstalk attenuation (NEXT)66 dB/m (with 1 MHz)
57 dB/m (at 4 МHz)
52 dB/m (at 10 MHz)
50 dB/m (at 16 MHz)
47 dB/m (at 20 МHz)
45 dB/m (at 31.25 МHz)
40 dB/m (at 62.5 МHz)
36 dB/m (at 100 MHz)
Wave attenuation0.028 dB/m (with 1 MHz)
0.06 dB/m (at 4 МHz)
0.085 dB/m (at 10 MHz)
0.115 dB/m (at 16 MHz)
0.128 dB/m (at 20 МHz)
0.162 dB/m (at 31.25 МHz)
0.23 dB/m (at 62.5 МHz)
0.29 dB/m (at 100 MHz)
Signal speed0.77 c
Signal runtime4.3 ns/m
Interference suppressionapprox. 65 dB (at 30 MHz)
Coupling resistance≤ 5.00 mΩ/m (at 20 МHz)
Nominal voltage, cable50 Vrms
125 V (Peak value, not for high-power applications)
Test voltage Core/Core1000 Vrms
Test voltage Core/Shield500 Vrms
Twisted pairs2 cores to the pair
Overall twistTwo pairs with two fillers to the core
ShieldingPlastic-coated aluminum foil, tinned copper braided shield
Optical shield covering85 %
Outer sheath, materialPUR
Material conductor insulationFoam-Skin PE
Conductor materialBare Cu litz wires
Cable weight43 kg/km
Smallest bending radius, fixed installation30 mm (cable, fixed installation)
Smallest bending radius, movable installation78 mm (cable, flexible installation)
Flame resistanceaccording to VDE 0482 Part 265-2-1
according to IEC 332-1
Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027060300
eCl@ss 4.127060300
eCl@ss 5.027061800
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311
Back to top

ETIM

ETIM 3.0EC000830
ETIM 4.0EC000830
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855
Back to top

UNSPSC

UNSPSC 6.0126121609
UNSPSC 7.090126121609
UNSPSC 1126121609
UNSPSC 12.0126121609
UNSPSC 13.231251501
UNSPSC 19.031251501
UNSPSC 20.031251501
UNSPSC 21.031251501
Back to top

ETIM for 1404301 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Other
Cable length (EF000536) 15 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -20 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP67
