> PHOENIX CONTACT > Industrial Field Connectivity (IFC) > 1445279
PHOENIX CONTACT VS-M12MSD-IP20-LI-93P/10,0 VS-M12MSD-IP20-LI-93P/10,0 1445279 PHOENIX CONTACT Assembled Ethernet cable, CAT5e, shielded, 2-pair, 26 AWG.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VS-M12MSD-IP20-LI-93P/10,0 1445279 PHOENIX CONTACT Assembled Ethernet cable, CAT5e, shielded, 2-pair, 26 AWG..

VS-M12MSD-IP20-LI-93P/10,0

1445279

PHOENIX CONTACT

25 Pcs.

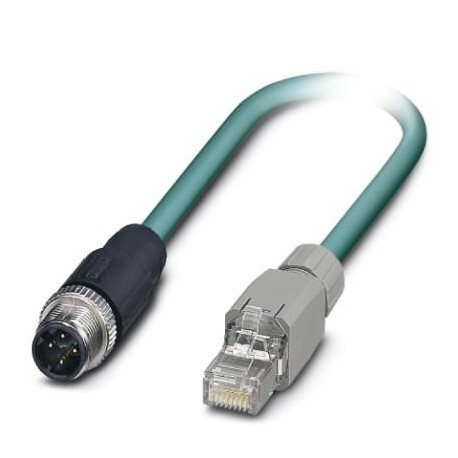

Assembled Ethernet cable, CAT5e, shielded, 2-pair, 26 AWG stranded (7-wire), RAL 5021 (water blue), M12 plug to RJ45 plug/IP20, line, length: 10 m Ready-made Ethernet cable, CAT5e, shielded, 2-pair, flexible AWG 26 (7-wire), RAL 5021 (water blue), male connector M12 to male connector RJ45/IP20, line, length 10 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1445279
Packing unit1
GTIN4046356582643
Custom tariff number85444290

Drawings

Dimensional drawing

Dimensional drawing
Plug, M12 x 1, straight, shielded

Dimensional drawing

Dimensional drawing
RJ45 connector, IP20

Back to top

Dimensions

Length of cable10 m
Back to top

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C (cable, fixed installation)
-5 °C ... 50 °C (cable, flexible installation)
Back to top

General data

Rated voltage48 V AC
60 V DC
Number of positions4
Signal type/categoryEthernet CAT5 (IEC 11801:2002)
Degree of pollution3
Alternative short product descriptionEthernet cable
Back to top

Standards and Regulations

Flammability rating according to UL 94V2
Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027060300
eCl@ss 4.127060300
eCl@ss 5.027060300
eCl@ss 5.127060300
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311
Back to top

ETIM

ETIM 3.0EC000830
ETIM 4.0EC000830
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855
Back to top

UNSPSC

UNSPSC 6.0131261501
UNSPSC 7.090131261501
UNSPSC 1131261501
UNSPSC 12.0131261501
UNSPSC 13.231251501
UNSPSC 19.031251501
UNSPSC 20.031251501
UNSPSC 21.031251501
Back to top

ETIM for 1445279 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Halogen free (EF000025) No
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Rated voltage (EF000228) 48 V
