PHOENIX CONTACT VS-M12MS-IP20-94B-LI/15,0 VS-M12MS-IP20-94B-LI/15,0 1403376 PHOENIX CONTACT Assembled Ethernet cable, shielded, 4-pair, AWG 26, strand.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VS-M12MS-IP20-94B-LI/15,0 1403376 PHOENIX CONTACT Assembled Ethernet cable, shielded, 4-pair, AWG 26, strand..

VS-M12MS-IP20-94B-LI/15,0

1403376

PHOENIX CONTACT

25 Pcs.

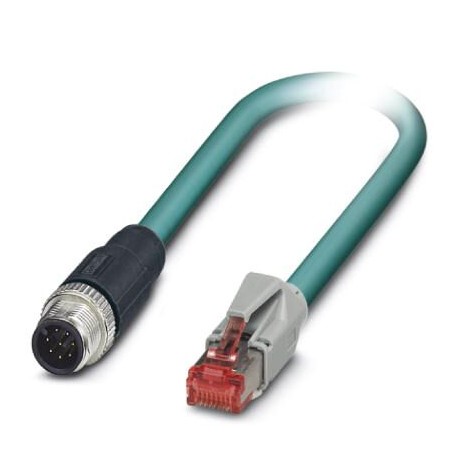

Assembled Ethernet cable, shielded, 4-pair, AWG 26, stranded (7-wire), RAL 5021 (aqua blue), M12 plug to RJ45 plug/IP20, line, length 15 m Confec., shielded, 4 pairs, flexible AWG 26 (7 wires), RAL 5021 (aqua blue), connector. M12 male in conec. RJ45/IP20 male, Line, long. 15 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1403376
Packing unit1 pc
Minimum order quantity25 pc
GTIN4046356649629
Weight per Piece (excluding packing)740.000 g
Custom tariff number85444210
Country of originPL (Poland)

Drawings

Dimensional drawing

Dimensional drawing
Plug, M12 x 1, straight, shielded

Dimensional drawing

Dimensional drawing

Circuit diagram

Circuit diagram

Cable cross section

Cable cross section
Ethernet, flexible, CAT5 [94B]

Back to top

Dimensions

Length of cable15 m
Back to top

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C (cable, fixed installation)
-5 °C ... 60 °C (cable, flexible installation)
Back to top

General data

Rated voltage30 V AC
Number of positions8
Degree of pollution3
Back to top

Standards and Regulations

Flammability rating according to UL 94HB
Back to top

Cable

Cable typeEthernet, flexible, CAT5
Cable type (abbreviation)94B
UL AWM style20963 (80°C/30 V)
Signal type/categoryEthernet CAT5 (IEC 11801), 1 Gbps
Cable structure4x2xAWG26/7; SF/UTP
Conductor cross section4x 2x 0.14 mm²
AWG signal line26
Conductor structure signal line7x 0.16 mm
Core diameter including insulation0.96 mm
Wire colorswhite/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Twisted pairs2 cores to the pair
Overall twist4 pairs for core
ShieldingAluminum-coated foil, tinned copper braided shield
Optical shield covering70 %
External sheath, colorwater blue RAL 5021
Outer sheath thickness1.05 mm
External cable diameter D6.4 mm ±0.2 mm
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Tensile strength GRP≤ 100 N
Cable weight47 kg/km
Outer sheath, materialPUR
Material conductor insulationFoamed PE
Conductor materialBare Cu litz wires
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 290.00 Ω/km
Cable capacity48 nF/km (at 1 kHz)
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Near end crosstalk attenuation (NEXT)71.3 dB (with 1 MHz)
62.3 dB (at 4 МHz)
56.3 dB (at 10 MHz)
53.2 dB (at 16 MHz)
51.8 dB (at 20 МHz)
48.9 dB (at 31.25 МHz)
44.4 dB (at 62.5 МHz)
41.3 dB (at 100 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)62.3 dB (with 1 MHz)
53.3 dB (at 4 МHz)
47.3 dB (at 10 MHz)
44.2 dB (at 16 MHz)
42.8 dB (at 20 МHz)
39.9 dB (at 31.25 МHz)
35.4 dB (at 62.5 МHz)
32.3 dB (at 100 MHz)
Attenuation3.2 dB (with 1 MHz)
6 dB (at 4 МHz)
9.5 dB (at 10 MHz)
12.1 dB (at 16 MHz)
13.6 dB (at 20 МHz)
17.1 dB (at 31.25 МHz)
24.8 dB (at 62.5 МHz)
32 dB (at 100 MHz)
Return loss (RL)23 dB (at 4 МHz)
24.1 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
23.6 dB (at 31.25 МHz)
21.5 dB (at 62.5 МHz)
20.1 dB (at 100 MHz)
Signal runtime5.3 ns/m
Coupling resistance≤ 100.00 mΩ/m (at 10 MHz)
Nominal voltage, cable≤ 100 V
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700 V (50 Hz, 1 min.)
Flame resistanceaccording to IEC 60332-1-2
Halogen-freeaccording to IEC 60754-1
Resistance to oilaccording to EN 60811-2-1
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 80 °C
Ambient temperature (storage/transport)-20 °C ... 80 °C
Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027060300
eCl@ss 4.127060300
eCl@ss 5.027061800
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311
Back to top

ETIM

ETIM 4.0EC000830
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855
Back to top

UNSPSC

UNSPSC 6.0126121616
UNSPSC 7.090126121616
UNSPSC 1126121604
UNSPSC 12.0126121616
UNSPSC 13.231251501
UNSPSC 19.031251501
UNSPSC 20.031251501
UNSPSC 21.031251501
Back to top

ETIM for 1403376 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 15 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -20 °C
Rated voltage (EF000228) 30 V
