NBC-M12MSD/10,0-93C/R4AQ WL 1404398 PHOENIX CONTACT Assembled PROFINET cable, CAT5e, shielded, star-quad, 22..
NBC-M12MSD/10,0-93C/R4AQ WL
1404398
PHOENIX CONTACT
50 Pcs.

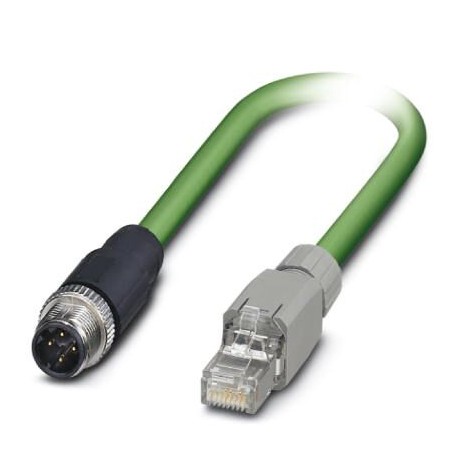

Assembled PROFINET cable, CAT5e, shielded, star-quad, 22 AWG flexible cable conduit capable (7-wire), RAL 6018 (yellow-green), M12 plug to RJ45 plug/IP20, line, length: 10 m
Ready-made PROFINET cable, CAT5e, shielded, star quads, AWG 22 suitable for power supply chains (7 wires), RAL 6018 (yellow-green), M12 connector to RJ45/IP20 connector, Line, length 10 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Mechanical characteristics
| Overvoltage category | I |
|---|---|
| Degree of pollution | 3 |
| Cable outlet | straight |
| No. of cable outlets | 1 |
Ambient conditions
| Ambient temperature (operation) | -10 °C ... 60 °C (cable, fixed installation) |
|---|---|
| -10 °C ... 60 °C (cable, flexible installation) |
Line characteristics
| Cable type | PROFINET |
|---|---|
| Cable structure | 1x4xAWG22/7; SF/TQ |
| Conductor cross section | 0.34 mm² |
| AWG signal line | 22 |
| Conductor structure signal line | 7x 0.25 mm |
| Core diameter including insulation | approx. 1.5 mm |
| External cable diameter | 6.50 mm |
| Wire colors | White, yellow, blue, orange |
| External sheath, color | green RAL 6018 |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Wave impedance | 100 Ω ±15 Ω (at 1 ... 100 MHz) |
| Outer sheath, material | PUR |
| Conductor material | Tin-plated Cu litz wires |
| Cable weight | 61.00 kg/km |
| Smallest bending radius, fixed installation | 33 mm |
| Smallest bending radius, movable installation | 50 mm |
| Max. bending cycles | 3000000 |
| Bending radius | 200 mm |
| Traversing rate | 4 m/s |
| Acceleration | 4 m/s² |
Electrical characteristics
| Number of positions | 4 |
|---|---|
| GRP transmission properties | CAT5 IEC 11801 |
| Transmission speed | 100 Mbps |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 4.0 | 24010400 |
|---|---|
| eCl@ss 4.1 | 24010400 |
| eCl@ss 5.0 | 19030300 |
| eCl@ss 5.1 | 19030300 |
| eCl@ss 6.0 | 27061800 |
| eCl@ss 7.0 | 27060308 |
| eCl@ss 8.0 | 27060308 |
| eCl@ss 9.0 | 27060308 |
UNSPSC
| UNSPSC 6.01 | 31261501 |
|---|---|
| UNSPSC 7.0901 | 31261501 |
| UNSPSC 11 | 31261501 |
| UNSPSC 12.01 | 31261501 |
| UNSPSC 13.2 | 26121604 |
| UNSPSC 18.0 | 26121604 |
| UNSPSC 19.0 | 26121604 |
| UNSPSC 20.0 | 26121604 |
| UNSPSC 21.0 | 26121604 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Positioning cable feed, field-sided (EF005928) | Other |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 10 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -40 °C |
| Rated voltage (EF000228) | 48 V |
