VS-M12FSBP-M12MS-936-LI/1,55 1403383 PHOENIX CONTACT Netzwerkkabel

VS-M12FSBP-M12MS-936-LI/1,55

1403383

PHOENIX CONTACT

50 Pcs.

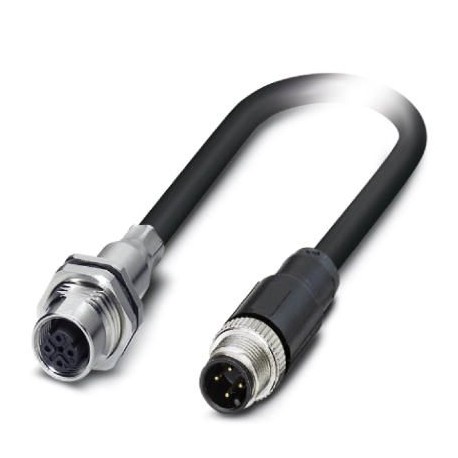

Netzwerkkabel Conect. plug. to be apar. poster wall, PROFINET CAT5 (100 MBit/s), 4-pole, PE-X, black RAL 9005, shielded, Straight connector M12, coding: D SPEEDCON / IP67, a Straight built-in mounting female M12, coding: D / IP67, cable length: 1.55 m

Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1403383
Packing unit1 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4046356650168
Weight per Piece (excluding packing)164.400 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable1.55 m

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
-40 °C ... 90 °C (cable, fixed installation)
-25 °C ... 90 °C (cable, flexible installation)

General data

Rated current at 40°C4 A
Rated voltage250 V
Number of positions4
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
Standards/regulationsM12 connector IEC 61076-2-101
Overvoltage categoryII

Characteristics head 1

Head typePlug straight M12 SPEEDCON / IP67
No. of positions (pin connector pattern)4
CodingD (Data)
Colorblack
Material (component)CuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Insulation resistance≥ 100 MΩ
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm
Ambient temperature (operation)-25 °C ... 90 °C

Characteristics head 2

Head typeFlush-type socket straight M12 / IP67
No. of positions (pin connector pattern)4
CodingD (Data)
Material (component)CuZn (Contact)
Ni/Au (Contact surface)
PA 6.6 (Contact carriers)
FKM (O-ring)
Zinc die-cast, nickel-plated (Housing)
Insertion/withdrawal cycles≥ 100
Ambient temperature (operation)-40 °C ... 85 °C

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101

Cable

Cable typePROFINET railway applications
Cable type (abbreviation)936
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG22/7; SF/TQ
Conductor cross section4x 0.34 mm²
AWG signal line22
Conductor structure signal line7x 0.25 mm
Core diameter including insulation1.95 mm
Wire colorswhite-blue, orange-yellow
Overall twistStar quad
ShieldingPlastic-coated aluminum foil, tinned copper braided shield
Optical shield covering100 %
External sheath, colorblack RAL 9005
Outer sheath thickness≥ 0.8 mm
External cable diameter D7.25 mm ±0,3 mm
Minimum bending radius, fixed installation6 x D
Minimum bending radius, flexible installation10 x D
Cable weight81 g/m
Outer sheath, materialPE-X
Material conductor insulationPE-X
Conductor materialsilver-plated Cu litz wires
Conductor resistance≤ 54.4 Ω/km
Working capacitance≤ 65 pF (core-core)
≤ 100 pF (core-shield)
Wave impedance100 Ω ±5 Ω (f = 100 MHz)
Near end crosstalk attenuation (NEXT)80 dB (with 1 MHz)
76 dB (at 4 МHz)
67 dB (at 10 MHz)
60 dB (at 31.5 МHz)
56 dB (at 62.5 МHz)
53 dB (at 100 MHz)
Remote crosstalk attenuation (FEXT)80 dB (with 1 MHz)
70 dB (at 4 МHz)
65 dB (at 10 MHz)
58 dB (at 31.5 МHz)
59 dB (at 62.5 МHz)
67 dB (at 100 MHz)
Attenuation2 dB (with 1 MHz)
4 dB (at 4 МHz)
6.5 dB (at 10 MHz)
10.5 dB (at 31.5 МHz)
14 dB (at 62.5 МHz)
18 dB (at 100 MHz)
Return loss (RL)35 dB (at 4 МHz)
35 dB (at 10 MHz)
35 dB (at 31.5 МHz)
33 dB (at 62.5 МHz)
33 dB (at 100 MHz)
Signal speed66 c
Shield attenuation40 dB (30 MHz ≤ f ≤ 100 MHz)
Coupling resistance200.00 mΩ/m (f ≤ 30 MHz)
Nominal voltage, cable300 V AC
Test voltage, cable2000 V AC (50 Hz, 5 minutes)
Fire protection in rail vehiclesBS 6853 (Category Ia, Ib, II)
GM/RT 2130 (Category Ia, Ib, II)
EN 45545 (Risk level HL1 - HL3)
DIN 5510 (Fire protection level 1, 2, 3, 4)
NF F16-101 (Category A1, A2, B)
NF F16-101 (Class C/F0)
NFPA 130
UNI CEI 11170 (Risk level LR1 - LR4)
Flame resistanceEN 60332-1-2
EN 50266
EN 60332-3-25
NF C32-070, 2.1
NF C32-070, 2.2
UL 1685, 12 (FT4)
in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Halogen-freeAccording to EN 50267-2-1
Resistance to oilaccording to IRM 902, 72 h at 100 °C
Other resistanceResistance to fuels according to IRM 903, 168 h at 70 °C
Concentration of fumesBS 6853 D.8.7
EN 61034-2
UL 1685, 12 (FT4)
Fume corrosivenessEN 50267-2-2
Fume toxicityBS 6853 B.1
EN 50305, 9.2
Ambient temperature (operation)-50 °C ... 90 °C (cable, fixed installation)
-40 °C ... 90 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1403383 Connectors (EC002635)
Feature Name Feature Value
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 4
Rated current In (EF008250) 4 A
Ambient temperature (EF002386) -25 °C
Rated voltage (EF000228) 48 V
Over voltage category (EF006785) II
Type of locking (EF000208) Other
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP65
Screened (EF000881) No
With status indication (EF001602) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
