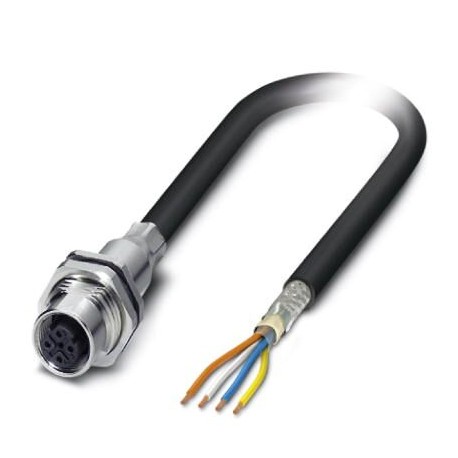

VS-FSDBPS-OE-937-4,0 1425310 PHOENIX CONTACT Network cable VS-FSDBPS-OE-937-4,0 1425310
VS-FSDBPS-OE-937-4,0
1425310
PHOENIX CONTACT
50 Pcs.
Network cable - VS-FSDBPS-OE-937-4,0 - 1425310
Conect. plug. to be apar. poster wall, PROFINET CAT5 (100 MBit/s) CAT5 (100 MBit/s), 4-pole, halogen-free PE-X, green RAL 6018, shielded, Built-in mounting female, straight, M12-SPEEDCON, encoding: D, free cable end, M16 x 1.5, Bus line, cable length: 5 m, 0.34 mm², PROFINET, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1239504
Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Assembled PROFINET cable, CAT5e, shielded, star-quad, 22 AWG (7-wire), black, M12 flush-type socket, rear/screw mounting with M16 thread to free cable end, length: 4 m
Key Commercial Data
| Orderkey | 1425310 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626390178 |
| Custom tariff number | 85444290 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 6.0 | 27279200 |
|---|---|
| eCl@ss 7.0 | 27279218 |
| eCl@ss 8.0 | 27279218 |
| eCl@ss 9.0 | 27060311 |
ETIM
| ETIM 5.0 | EC001855 |
|---|---|
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Cable length (EF000536) | 5 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -50 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -40 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 250 V |
