View larger
Images are for illustrative purposes only. Please refer to data sheet for details

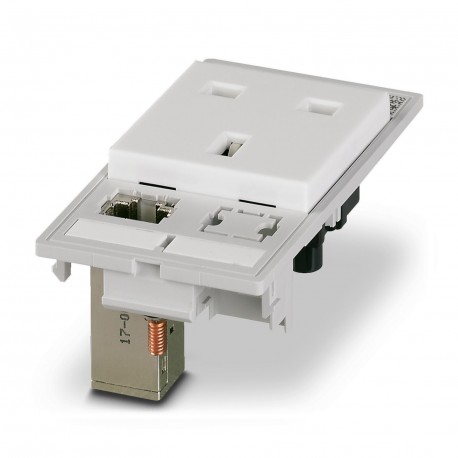

VS-FP-SD-GB-RJ456A-BUBU 1054544 PHOENIX CONTACT Front plate
VS-FP-SD-GB-RJ456A-BUBU
1054544
PHOENIX CONTACT
1 Pcs.
Front plate
Grounding socket, plastic, for England, incl. RJ45 Gender Changer (female/female connector, shielded), CAT6A
Socket with earth contact, plastic, for UK, Gender Changer RJ45 incl. (female/female, shielded), CAT6A
Automation > Front plate (switchgear cabinet)
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1054544 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626689296 |
| Weight per Piece (excluding packing) | 101.200 g |
| Custom tariff number | 85366990 |
| Country of origin | HU (Hungary) |
Mechanical characteristics
| Number of positions | 8 |
|---|---|
| Insertion/withdrawal cycles | >= 750 (RJ45) |
| Connection method | Screw connection |
| Conductor cross section | 4 mm² (Screw connection without wire protection) |
| Connection cross section AWG | 12 |
| Contact insert design | with 1x RJ45 Socket/socket, Cat 6, classEA (ISO/IEC 11801:2002), (EN 50173-1) |
Ambient conditions
| Ambient temperature (operation) | -5 °C ... 50 °C |
|---|---|
| Degree of protection | IP20 (Front) |
| IP00 (Back side) |
Material data
| Housing material | PBT |
|---|---|
| Material | Zinc die-cast, nickel-plated (RJ45) |
| PBT (Front plate) | |
| PC (Socket, labeling field) | |
| Height | 43 mm |
Electrical characteristics
| Rated voltage (III/3) | 250 V (Socket) |
|---|---|
| Rated current | 13 A (Socket) |
| Transmission speed | 10 Gbps (Class EA (ISO/IEC 11801:2002), (EN 50173-1)) |
Classifications
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 50.7 mm |
| Height (EF000040) | 43 mm |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
