View larger
Images are for illustrative purposes only. Please refer to data sheet for details

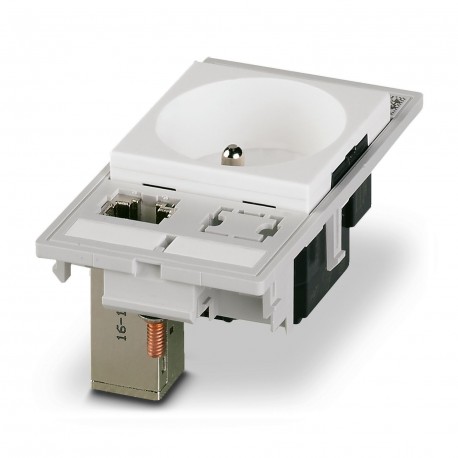

VS-FP-SD-FR-RJ456A-BUBU 1054543 PHOENIX CONTACT Front plate
VS-FP-SD-FR-RJ456A-BUBU
1054543
PHOENIX CONTACT
1 Pcs.
Front plate
Grounded power socket, plastic, for France, incl. RJ45 Gender Changer (female/female connector, shielded), CAT6A
Grounding contact socket, plastic, for France, including RJ45 gender changer (female/female, shielded), CAT6A
Automation > Front plate (switchgear cabinet)
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Data front plate |
| Number of positions | 8 |
| Country ID | France |
| Data management status | |
| Article revision | 00 |
Electrical properties
| Rated voltage (III/3) | 250 V (Socket) |
| max. 30 V AC (RJ45) | |
| max. 42.4 V DC (RJ45) | |
| Rated current | 16 A (Socket) |
| Nominal current IN | max. 175 mA (RJ45) |
| Transmission speed | 10 Gbps |
Connection data
| Connection method | Screw connection |
Dimensions
| Dimensional drawing |  |
| Width | 50.7 mm |
| Height | 43 mm |
| Length | 87.5 mm |
Material specifications
| Material | Die-cast zinc, nickel-plated (RJ45) |
| Material Housing | PBT (Front plate) |
| Material | (Socket, labeling field) |
Connector
| Contact insert design | with 1x RJ45 Socket/socket, Cat 6, classEA (ISO/IEC 11801:2002), (EN 50173-1) |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | >= 750 (RJ45) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 (Front) |
| Ambient temperature (operation) | -5 °C ... 50 °C |
Mounting
| Assembly note | Shroud connection: M4 threaded pin, tightening torque: 0.8 Nm ... 1.0 Nm |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 50.7 mm |
| Height (EF000040) | 43 mm |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
