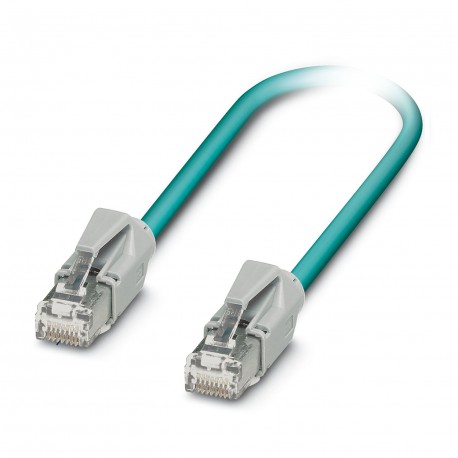

PHOENIX CONTACT VS-08-LI-C25-51-0,5-VW VS-08-LI-C25-51-0,5-VW 1405073 PHOENIX CONTACT Connector component

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

VS-08-LI-C25-51-0,5-VW 1405073 PHOENIX CONTACT Connector component

Name: VS-08-LI-C25-51-0,5-VW 1405073 PHOENIX CONTACT Connector component
Brand: PHOENIX CONTACT
SKU: 1405073

Reference: VS-08-LI-C25-51-0,5-VW

Code: 1405073

Manufacturer: PHOENIX CONTACT

Units per package: 10 Pcs.

Description:

Connector component Plug-in connector components, number of poles: 8

Categories:
Cables > Data cable
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Key Commercial Data

Orderkey	1405073
Packing unit	1 pc
Minimum order quantity	10 pc
Note	Made to Order (non-returnable)
GTIN	4046356302890
Weight per Piece (excluding packing)	41.800 g
Custom tariff number	85444210
Country of origin	DE (Germany)

Mechanical characteristics

Number of positions	8
Shielded	yes
Cable diameter	6.10 mm
Cable structure	4x2xAWG26/7; S-UTP

Ambient conditions

Ambient temperature (operation)	-30 °C ... 80 °C (cable, fixed installation)
	-5 °C ... 60 °C (cable, flexible installation)
	Plug / socket

Material data

Outer sheath, material	PUR
External sheath, color	water blue RAL 5021

Line characteristics

Cable type	Ethernet
Cable structure	4x2xAWG26/7; S-UTP
Conductor cross section	0.14 mm²
AWG signal line	26
Conductor structure signal line	7x 0.16 mm
Core diameter including insulation	1 mm
External cable diameter	6.10 mm
Wire colors	white/blue-blue, white/orange-orange, white/green-green, white/brown-brown
External sheath, color	water blue RAL 5021
Insulation resistance	≥ 5 GΩ*km
Conductor resistance	≤ 284 Ω/km
Transmission characteristics (category)	CAT5 (IEC 11801:2002)
Working capacitance	48 nF (At 800 Hz)
Wave impedance	100 Ω ±15 % (at 1 ... 100 MHz)
Nominal voltage, cable	125 V
Test voltage Core/Core	1000 V
Test voltage Core/Shield	500 V
Twisted pairs	2 cores to the pair
Overall twist	4 pairs for core
Shielding	Plastic-coated aluminum foil, tinned copper braided shield
Optical shield covering	85 %
Outer sheath, material	PUR
Conductor material	Bare Cu litz wires
Smallest bending radius, fixed installation	50 mm (cable, fixed installation)
Smallest bending radius, movable installation	95 mm (cable, flexible installation)
Ambient temperature (operation)	-20 °C ... 70 °C (cable, fixed installation)
	-5 °C ... 60 °C (cable, flexible installation)
