View larger
Images are for illustrative purposes only. Please refer to data sheet for details

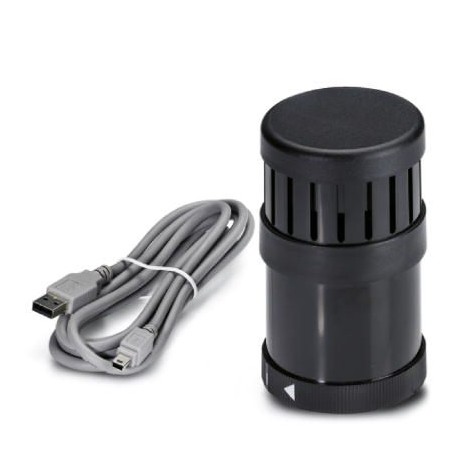

PSD-S AE V15/1 2700140 PHOENIX CONTACT Acoustic element
PSD-S AE V15/1
2700140
PHOENIX CONTACT
1 Pcs.
Acoustic element
Voice output element, 24 V DC, memorizes as max. 50 mp3 or wav files, max. 15 file activation, black
Automation > Acoustic module for signal tower
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2700140 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 503 (C-6-2017) |
| GTIN | 4046356491327 |
| Weight per Piece (excluding packing) | 267.500 g |
| Custom tariff number | 85318070 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Degree of protection | IP65, when installed |
General
| Material | Polycarbonate PC |
|---|---|
| Color | black |
| Weight | 184 g |
| Mounting position | any |
| Scope of delivery | USB cable, software for configuring the voice output element, and user manual on the element |
Electrical data
| Input voltage | 24 V DC ±10 % |
|---|---|
| Nominal input voltage range | 21.6 V DC ... 26.4 V DC |
| Maximum inrush current | max. 3 A (for approximately 2 ms) |
| Current consumption | < 50 mA (in standby mode) |
| Service life, electrical | min. 5,000 h |
| Operating time | 100 % |
| Type of acoustic signal | Voice, max. 15 texts |
| Volume | approx. 88 dB(A) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027240208eCl@ss 4.127240208eCl@ss 5.027371214eCl@ss 5.127371200eCl@ss 6.027371200eCl@ss 7.027371214eCl@ss 8.027371214eCl@ss 9.027371214
| Feature Name | Feature Value |
|---|---|
| Outer diameter (EF000015) | 71.5 mm |
| Colour (EF000007) | Black |
| Operating voltage DC (EF008208) | 21.6 V |
| Voltage type (EF000187) | DC |
| Degree of protection (IP) (EF005474) | IP65 |
| Loudness (EF000144) | 88 dB |
