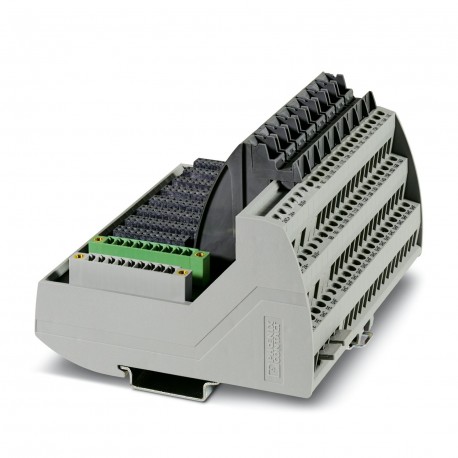

PHOENIX CONTACT VIP/S/MC/BASE 9-16/L/C/EX VIP/S/MC/BASE 9-16/L/C/EX 2907187 PHOENIX CONTACT Base module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VIP/S/MC/BASE 9-16/L/C/EX 2907187 PHOENIX CONTACT Base module

VIP/S/MC/BASE 9-16/L/C/EX

2907187

PHOENIX CONTACT

1 Pcs.

Base module Marshalling 8-channel VIP I/O base element for universal use. All connections as screw connection technology. With the COMBICON connector, compatible with the Honeywell C300 RUSIO series. Labeling for channels 9-16 and painting.

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2907187
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 553 (C-5-2017)
GTIN4055626239507
Weight per Piece (excluding packing)450.000 g
Custom tariff number85366990
Country of originUS (United States)

Dimensions

Width118.1 mm
Height102.7 mm
Depth72.2 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 75 °C
Ambient temperature (storage/transport)-40 °C ... 75 °C

General

Max. operating voltage Umax30 V DC (P2 and field terminals)
Max. operating voltage30 V DC (P2 and field terminals)
230 V AC (P2 and field terminals)
30 V DC (P1 terminals)
30 V (X30 and X31 connectors)
Max. perm. current (per branch)3 A (field signal)
1 A (control contacts)
Max. permissible current15 A ()
Max. permissible total current15 A (per module)
Status displayNo
Mounting positionAs desired on 35 mm DIN rail in acc. with EN 60715
Degree of protectionIP20

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM 3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Torque0.5 Nm ... 0.6 Nm

Connection data for connection 2

Connection nameController level
Connection methodPluggable screw connection
Number of connections2
Number of positions9

Supported controller

Controlleruniversal

Safety data

Input voltage Ui30 V (per channel)
Input current Ii1 A (per channel)
Inductance Li0 mH
Capacitance Ci0 µF
ATEXSira 16ATEX4260X; Ex II 3G
Ex nA ic IIC T4 Gc; Ex nA IIC T4 Gc
IECExIECEx SIR 16.0088X
Ex nA ic IIC T4 Gc; Ex nA IIC T4 Gc
FM approvalClass I, Zone 2, AEx nA ic IIC T4 Gc; AEx nA IIC T4 Gc
Nonincendive: Class I, Div. 2, Groups A, B, C, D T4
With connection to Class I, II, and III, Div. 2, Groups A, B, C, D, E, F, G

Standards and Regulations

Standards/regulationsIEC 60664
DIN EN 50178
ConformanceANSI/ISA 60079-0; 60079-11; 60079-15
ANSI/IEC 60529
FM 3600; 3611; 3810
ATEXSira 16ATEX4260X; Ex II 3G
Ex nA ic IIC T4 Gc; Ex nA IIC T4 Gc
IECExIECEx SIR 16.0088X
Ex nA ic IIC T4 Gc; Ex nA IIC T4 Gc

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2907187 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Number of poles (EF001391) 9
Rated current (EF000227) 15 A
Depth (EF000049) 72.2 mm
Width (EF000008) 118.1 mm
Height (EF000040) 102.7 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
