View larger
Images are for illustrative purposes only. Please refer to data sheet for details

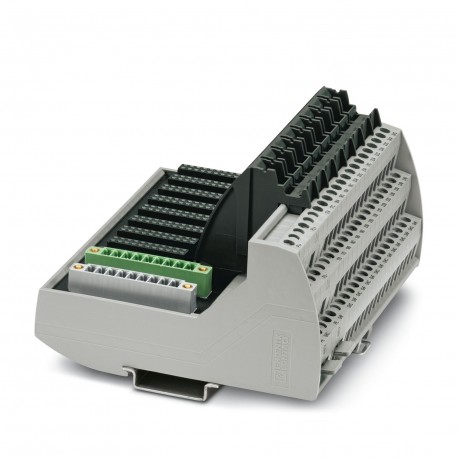

VIP/S/MC/BASE 17-24/L/EX 2907024 PHOENIX CONTACT Base module
VIP/S/MC/BASE 17-24/L/EX
2907024
PHOENIX CONTACT
1 Pcs.
Base module
Marshalling 8-channel VIP I/O base element for universal use. All connections as screw connection technology. With the COMBICON connector, compatible with the Honeywell C300 RUSIO series. Labeling for channels 17–24.
Automation > Interface module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Module carrier |
| Product family | VIP I/O-Marshalling |
| No. of channels | 8 |
| Data management status | |
| Article revision | 10 |
Electrical properties
| Max. operating voltage Umax | 30 V DC (P2 and field terminals) |
| 230 V AC (P2 and field terminals) | |
| 30 V DC (P1 terminals) | |
| 30 V (X30 and X31 connectors) | |
| Max. permissible current | 15 A (P1 or P2 terminals) |
| Max. permissible total current | 15 A (per module) |
| Max. current carrying capacity per branch | 3 A (field signal) |
| 1 A (control contacts) |
Connection data
| Field level | |
| Connection in acc. with standard | IEC / EN |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M 3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Controller level | |
| Connection method | Pluggable screw connection |
| Number of connections | 2 |
| Number of positions | 9 |
Ex data
| Safety data | |
| Input voltage Ui | 30 V (per channel) |
| Input current Ii | 1 A (per channel) |
| Inductance Li | 0 mH |
| Capacitance Ci | 0 µF |
Signaling
| Status display | no |
| Status display present | No |
Dimensions
| Item dimensions | |
| Width | 118.1 mm |
| Height | 102.7 mm |
| Depth | 72.2 mm |
Material specifications
| Color | gray (RAL 7042) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Permissible humidity (operation) | 0 % ... 95 % (non-condensing) |
Approvals
| ATEX | |
| Identification | Ex II 3G |
| Ex nA ic IIC T4 Gc | |
| Ex II 3G Ex nA ic IIC T4 Gc | |
| Ex II 3(3)G Ex nA [ic] IIC T4 Gc | |
| Ex II (3)D [Ex ic Dc] IIIC | |
| Certificate | Sira 16ATEX4260X |
| IECEx | |
| Identification | Ex nA IIC T4 Gc |
| Ex nA ic IIC T4 Gc | |
| Ex nA [ic] IIC T4 Gc | |
| [Ex ic Dc] IIIC | |
| Ex nA [ia Ga] IIC T4 Gc | |
| [Ex ia Da] IIIC | |
| Certificate | IECEx SIR 16.0088X |
| FM | |
| Identification | FM 3600 |
| FM 3611 | |
| FM 3810 | |
| Class I, Zone 2, AEx nA ic IIC T4 Gc | |
| AEx nA IIC T4 Gc | |
| Nonincendive: Class I, Div. 2, Groups A, B, C, D T4 | |
| With connection to Class I, II, and III, Div. 2, Groups A, B, C, D, E, F, G | |
| CSA, Canada | |
| Identification | Ex nA ic IIC T4 Gc |
| Ex nA IIC T4 Gc | |
| Nonincendive: Class I, Div. 2, Groups A, B, C, D T4 | |
| With connection to Class I, II, and III, Div. 2, Groups A, B, C, D, E, F, G | |
| ANSI/ISA | |
| Identification | ANSI/ISA 60079-0 |
| ANSI/ISA 60079-11 | |
| ANSI/ISA 60079-15 | |
| ANSI/IEC | |
| Identification | ANSI/IEC 60529 |
| Corrosive gas test | |
| Identification | ISA S71.04.2013 G3 Harsh Group A |
| Ex data | |
| ATEX | Sira 16ATEX4260X; Ex II 3G Ex nA ic IIC T4 Gc; Ex II 3G Ex nA ic IIC T4 Gc Ex II 3(3)G Ex nA [ic] IIC T4 Gc; Ex II (3)D [Ex ic Dc] IIIC |
| IECEx | IECEx SIR 16.0088X Ex nA IIC T4 Gc; Ex nA ic IIC T4 Gc; Ex nA [ic] IIC T4 Gc; [Ex ic Dc] IIIC Ex nA [ia Ga] IIC T4 Gc; [Ex ia Da] IIIC |
| FM approval | Class I, Zone 2, AEx nA ic IIC T4 Gc; AEx nA IIC T4 Gc Nonincendive: Class I, Div. 2, Groups A, B, C, D T4 With connection to Class I, II, and III, Div. 2, Groups A, B, C, D, E, F, G |
Standards and regulations
| Standards/regulations | IEC 60664 |
| DIN EN 50178 |
Mounting
| Mounting type | DIN rail mounting |
| Mounting position | As desired on 35 mm DIN rail in acc. with EN 60715 |
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Number of poles (EF001391) | 9 |
| Rated current (EF000227) | 15 A |
| Depth (EF000049) | 72.2 mm |
| Width (EF000008) | 118.1 mm |
| Height (EF000040) | 102.7 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
