View larger
Images are for illustrative purposes only. Please refer to data sheet for details

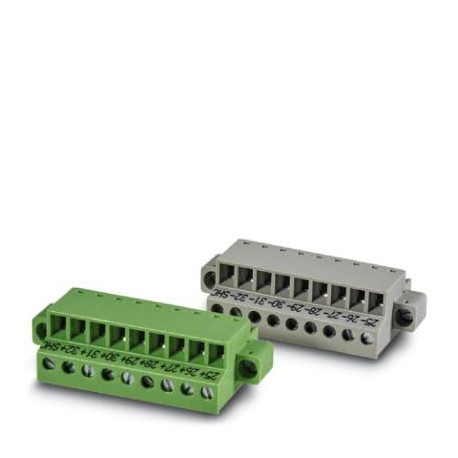

VIP/S/FRONT-MC/KIT 25-32 2907272 PHOENIX CONTACT Printed-circuit board connector
VIP/S/FRONT-MC/KIT 25-32
2907272
PHOENIX CONTACT
1 Pcs.
Printed-circuit board connector
A pair of connectors with screw terminals to connect to the VIP socket module with indicator 25-32
Automation > Accessories/spare parts for low-voltage switch technology
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2907272 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626257051 |
| Weight per Piece (excluding packing) | 25.800 g |
| Custom tariff number | 85366990 |
| Country of origin | US (United States) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
General
| Max. perm. operating voltage | 300 V (maximum continuous operating voltage) |
|---|---|
| Max. permissible current | 8 A |
Connection data for connection 1
| Connection name | Controller level |
|---|---|
| Connection method | Screw connection |
| Stripping length | 9 mm |
| Conductor cross section solid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Torque | 0.22 Nm ... 0.25 Nm |
| Number of positions | 9 |
Classifications
eCl@ss 10.0.127371392eCl@ss 5.027379201eCl@ss 5.127379100eCl@ss 6.027379200eCl@ss 7.027379201eCl@ss 8.027379201eCl@ss 9.027379201
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
