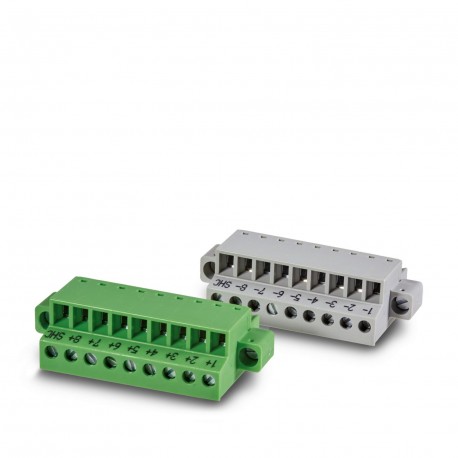

VIP/S/FRONT-MC/KIT 1-8 2907032 PHOENIX CONTACT Printed-circuit board connector
VIP/S/FRONT-MC/KIT 1-8
2907032
PHOENIX CONTACT
1 Pcs.
Printed-circuit board connector
A pair of connectors with screw terminals to connect to the VIP socket module with indicator 1-8
Pair of screw-clamp plugs to connect to VIP base module labeled 1-8
Automation > Accessories/spare parts for low-voltage switch technology
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | PCB connector |
| Product family | VIP I/O-Marshalling |
Electrical properties
| Max. permissible current | 8 A |
| Nominal voltage UN | 300 V (maximum continuous operating voltage) |
Connection data
| Controller level | |
| Connection method | Screw connection |
| Stripping length | 9 mm |
| Number of positions | 9 |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Tightening torque | 0.22 Nm ... 0.25 Nm |
Dimensions
| Item dimensions | |
| Width | 44.68 mm |
| Height | 12.3 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
