View larger
Images are for illustrative purposes only. Please refer to data sheet for details

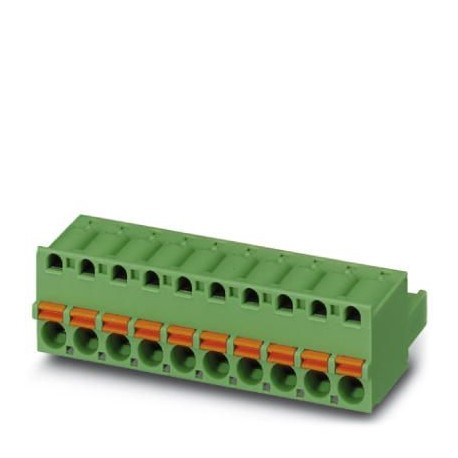

FKC 2,5/ 8-ST-5,08 BD:O8-O15Q 1714342 PHOENIX CONTACT Printed-circuit board connector
FKC 2,5/ 8-ST-5,08 BD:O8-O15Q
1714342
PHOENIX CONTACT
50 Pcs.
Printed-circuit board connector
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Range of articles | FKC 2,5/..-ST |
|---|---|
| Number of positions | 8 |
| Connection method | Push-in spring connection |
| Insulating material group | I |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 320 V |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 630 V |
| Nominal current IN | 12 A |
| Nominal cross section | 2.5 mm² |
| Flammability rating according to UL 94 | V0 |
| Internal cylindrical gage | A2 |
| Stripping length | 10 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
