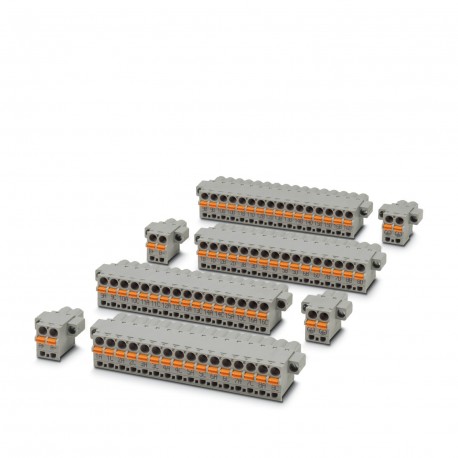

VIP/P/FKC/KIT CX 2910417 PHOENIX CONTACT Connector set
VIP/P/FKC/KIT CX
2910417
PHOENIX CONTACT
1 Pcs.
Connector set
Connector set for use with VIP/MSTB/D50M/BASE..., push-in connections
Plug kit for use with VIP/MSTB/D50M/BASE..., push-in connections
Automation > Accessories/spare parts for low-voltage switch technology
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | PCB connector |
| Product family | VIP I/O-Marshalling |
Electrical properties
| Max. permissible current | 10 A |
| Nominal voltage UN | 300 V (maximum continuous operating voltage) |
Connection data
| Field level | |
| Connection method | Push-in spring connection |
| Stripping length | 10 mm |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Housing insulation material | PA |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
