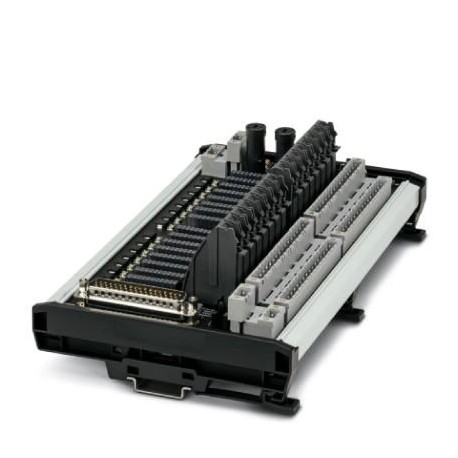

PHOENIX CONTACT VIP/MSTB/D50M/BASE/16CH/CX/EX VIP/MSTB/D50M/BASE/16CH/CX/EX 2908788 PHOENIX CONTACT Base module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VIP/MSTB/D50M/BASE/16CH/CX/EX 2908788 PHOENIX CONTACT Base module

VIP/MSTB/D50M/BASE/16CH/CX/EX

2908788

PHOENIX CONTACT

1 Pcs.

Base module Marshalling VIP I/O base element with 16 channels for universal use. Field terminals and plug-in supply are available as accessories. Optionally with screw or push-in connection technology. Compatible with the Tricon CX DCS (D-SUB 50) series.

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2908788
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4055626477992
Weight per Piece (excluding packing)761.300 g
Custom tariff number85366990
Country of originUS (United States)

Dimensions

Width250 mm
Height142.3 mm
Depth78 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C

General

Max. operating voltage Umax30 V DC (field terminals)
Max. operating voltage30 V DC (field terminals)
230 V AC (field terminals)
30 V DC (A and B terminals)
30 V DC (D-SUB 50 connector)
Max. perm. current (per branch)3 A (field signal)
0.5 A (control contacts)
Max. permissible current3 A (A and B terminals)
Max. permissible total current10 A (per module)
Status displayNo
Mounting positionAs desired on 35 mm DIN rail in acc. with EN 60715
Degree of protectionIP20

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodpluggable
Number of connections4
Number of positions16

Connection data for connection 2

Connection nameController level
Connection methodD-SUB pin strip
Number of connections1
Number of positions50

Supported controller

ControllerTricon CX

Standards and Regulations

Standards/regulationsIEC 60664
DIN EN 50178
Degree of pollution2
Overvoltage categoryII, III
ConformanceANSI/ISA 60079-0; 60079-11; 60079-15
ANSI/IEC 60529
FM 3600; 3611; 3810
ATEXSira 18ATEX 4041X
Ex II 3G; Ex nA IIC T4 Gc; Ex II 3(3)G Ex nA [ic] IIC T4 Gc; Ex II (3)G [Ex ic Gc] IIC
Ex II 3G (3)D Ex nA [ic IIIC Dc] IIC T4 Gc; Ex II (3)D [Ex ic Dc] IIIC
Sira 18ATEX 2040X
Ex II 3(1)G Ex nA [ia Ga] IIC T4 Gc; Ex II (1)G [Ex ia Ga] IIC; Ex II 3G (1)D
Ex nA [ia IIIC Da] IIC T4 Gc; Ex II (1)D [Ex ia Da] IIIC
IECExIECEx SIR 18.0007X
Ex nA IIC T4 Gc; Ex nA [ic] IIC T4 Gc; [Ex ic Gc] IIC; [Ex ic Dc] IIIC; Ex nA [ia Ga] IIC T4 Gc
Ex nA [ic IIIC Dc] IIC T4 Gc; Ex nA [ia IIIC Da] IIC T4 Gc; [Ex ia Ga] IIC; [Ex ia Da] IIIC
CSA, USA/CanadaNonincendive: Class I, Div. 2, Groups ABCD T4
Connection to Class I, II, III, Div. 2, Groups ABCDEFG
Class I, Zone 2, (A)Ex nA IIC T4 Gc, Class I, Zone 2
Class I, Zone 2 with connection to Class I, Zone 2, (A)Ex nA [ic] IIC T4 Gc
Class I, Zone 2 with connection to Class I, Zone 0, (A)Ex nA [ia Ga] IIC T4 Gc
Class I, Zone 2 with connection to Zone 22, (A)Ex nA [ic IIIC Dc] IIC T4 Gc
Class I, Zone 2 with connection to Zone 20, (A)Ex nA [ia IIIC Da] IIC T4 Gc

Environmental Product Compliance

REACh SVHCLead 7439-92-1

Classifications


ETIM for 2908788 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, control sided (EF008549) D-Sub
Number of poles (EF001391) 16
Rated current (EF000227) 3 A
Depth (EF000049) 78 mm
Width (EF000008) 250 mm
Height (EF000040) 142.3 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
