VIP-CAB-FLK50/21,0M/S/SC057 1098755 PHOENIX CONTACT Assembled shielded round cable with additional shield co..

VIP-CAB-FLK50/21,0M/S/SC057

1098755

PHOENIX CONTACT

1 Pcs.

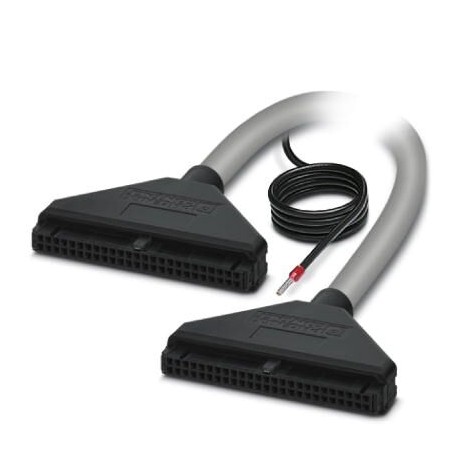

Assembled shielded round cable with additional shield connection and two molded 50-pos. female connectors (1:1 connection). The cable has two 180° punched-on connectors, cable length: 21 m Shielded ready-made round cable, with additional screen connection and two 50-pin injected plug pins (1:1 connection). The cable has two 180° plug-in connectors, cable length: 21 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1098755
Packing unit1
GTIN4055626944654
Custom tariff number85444290

Drawings

Diagram

Diagram
Maximum permissible current per path in uncoiled state

Back to top

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C (fixed installation)
-10 °C ... 70 °C (flexible installation)
Ambient temperature (storage/transport)-40 °C ... 80 °C
Maximum altitude≤ 2000 m
Degree of protectionIP20
≥ IP54 (Installation location)
Back to top

General

Max. permissible operating voltage24 V DC
Max. current carrying capacity per path0.5 A
Length of cable21 m
External cable diameter11 mm ±0,3 mm
Single wire, cross section0.14 mm²
Single wire, cross section [AWG]26
Single wire, number of litz wires7
Single wire, materialCu tin-plated
Wire diameter incl. insulation1 mm ±0.03 mm
Smallest bending radius, fixed installation113 mm
Smallest bending radius, movable installation203 mm
Bending cycles5000 (at a radius of ≥ 18x outside diameter)
Cable, preassemblyInsulation displacement, IEC 60352-4/DIN EN 60352-4
Shieldingyes
Tinned copper-braided shield, approx. 85% covering
Cable insulation resistance≥ 20 MΩ/km (20 °C)
Cable resistance≤ 145 Ω/km (at 20 °C)
Outer sheath, materialPVC
External sheath, colorgray RAL 7035
Nominal operating mode100% operating factor
Back to top

Connection data

Connection nameFlat-ribbon cable connector
Connection in acc. with standardIEC 60603-13
Connection methodIDC/FLK socket strip
Number of connections1
Number of positions50
Exit angle180 °
Insertion/withdrawal cycles> 200
Pitch2.54 mm
Back to top

Connection data 2

Connection nameFlat-ribbon cable connector
Connection in acc. with standardIEC 60603-13
Connection methodIDC/FLK socket strip
Number of connections1
Number of positions50
Exit angle180 °
Insertion/withdrawal cycles> 200
Pitch2.54 mm
Back to top

Standards and Regulations

Flame resistanceaccording to IEC 60332-1
According to CSA FT1
in acc. to UL VW1
Resistance to oilagainst occasional splashes
Gasoline resistanceagainst occasional splashes
DesignationAir clearances and creepage distances
Standards/regulationsDIN EN 50178
Rated insulation voltage50 V
Rated surge voltage0.5 kV (1.2/50 μs)
InsulationFunctional insulation
Pollution degree2
Overvoltage categoryII
Back to top

Supported controller

Controlleruniversal
universal
Back to top

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 8.027249205
eCl@ss 9.027242220
Back to top

ETIM

ETIM 5.0EC000237
ETIM 6.0EC000237
ETIM 7.0EC000237
Back to top

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
