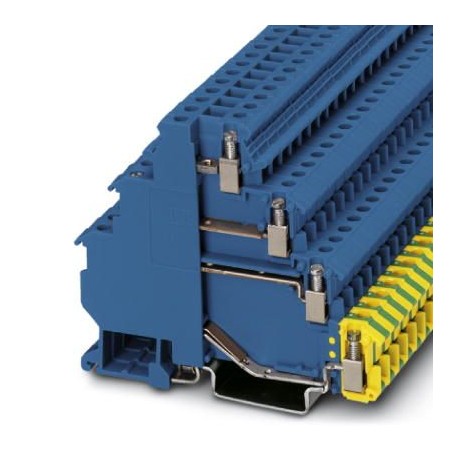

PHOENIX CONTACT VIOK 1,5-3D/PE-EX BU VIOK 1,5-3D/PE-EX BU 1043463 PHOENIX CONTACT Sensor/actuator terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VIOK 1,5-3D/PE-EX BU 1043463 PHOENIX CONTACT Sensor/actuator terminal block

VIOK 1,5-3D/PE-EX BU

1043463

PHOENIX CONTACT

50 Pcs.

Sensor/actuator terminal block Terminal block for detectors/actuators, nominal voltage: 400 V, nominal current: 24 A, connection type: Screw connection, 2nd, 3rd, and 4th floor, Dimensioning cross-section: 2.5 mm², cross-section: 0.2 mm² - 4 mm², mounting class: NS 35/7.5, NS 35/15, color: blue

Automation > Sensor/actuator terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1043463
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4055626607481
Weight per Piece (excluding packing)25.360 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of levels4
Number of connections7
Nominal cross section2.5 mm²
Colorblue
Insulating materialPA
Flammability rating according to UL 94V2
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition0.77 W (the value is multiplied when connecting multiple levels)
Connection in acc. with standardIEC 60947-7-1/IEC 60947-7-2
Nominal current IN24 A
Maximum load current26 A (with a 2.5 mm² conductor cross section)
Nominal voltage UN400 V (when using EB insertion bridges, the nominal voltage is reduced to 250 V.)
Open side panelNo

Dimensions

Width6.2 mm
Length82.5 mm
Height NS 35/7,570 mm
Height NS 35/1577.5 mm

Connection data

NotePlease observe the current carrying capacity of the DIN rails.
Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
Cross section with insertion bridge, solid max.4 mm²
Cross section with insertion bridge, stranded max.2.5 mm²
Cross section with insertion bridge, solid max.4 mm²
Cross section with insertion bridge, stranded max.2.5 mm²
Stripping length8 mm
Internal cylindrical gageA3
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1/IEC 60947-7-2
Flammability rating according to UL 94V2

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
