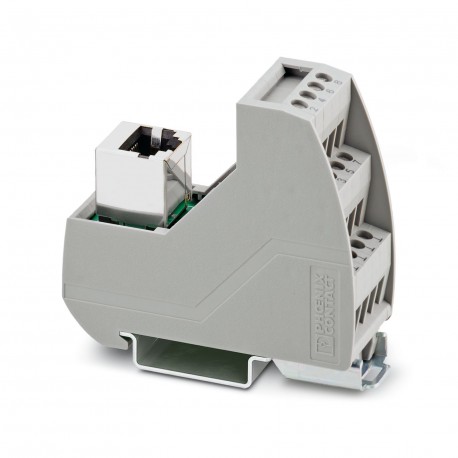

PHOENIX CONTACT VIP-3/SC/RJ45 VIP-3/SC/RJ45 2900701 PHOENIX CONTACT Interface module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VIP-3/SC/RJ45 2900701 PHOENIX CONTACT Interface module

VIP-3/SC/RJ45

2900701

PHOENIX CONTACT

1 Pcs.

Interface module VARIOFACE module with screw connection and RJ45 male connector

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeInterface module
Product familyVARIOFACE Professional
Number of positions8
Data management status
Article revision05
Electrical properties
Nominal voltage UN48 V AC/DC
Max. current carrying capacity per branch1 A
Max. total current of all branches4 A
Connection data
Field level
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM 3
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Tightening torque0.5 Nm ... 0.6 Nm
Controller level
Connection methodRJ45 jack
Number of connections1
Number of positions8
Signaling
Status displayno
Status display presentNo
Dimensions
Item dimensions
Width26.9 mm
Height69 mm
Depth62 mm
Material specifications
Colorgray (RAL 7042)
Housing insulation materialPolyamide PA non-reinforced
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Standards and regulations
Standards/regulationsEN 50178
Mounting
Mounting typeDIN rail mounting
Mounting positionany
Notes
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

ETIM for 2900701 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) RJ45
Number of poles (EF001391) 8
Rated voltage (EF000228) 48 V
Rated current (EF000227) 1 A
Depth (EF000049) 62 mm
Width (EF000008) 26.9 mm
Height (EF000040) 69 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
